Materials: Single or double-sided composite high-purity aluminum foil & glass fiber cloth
Size: Aluminum foil thickness:7 μ m~25 μ m, Length:1-12000 m, Width:3-290 cm, Customized
Customization, ODM, OEM: Materials, struction, GSM, thickness, size, print
Sales Models:Wholesales, retail
VGFCA3
VWIN
| Quantity: | |
|---|---|

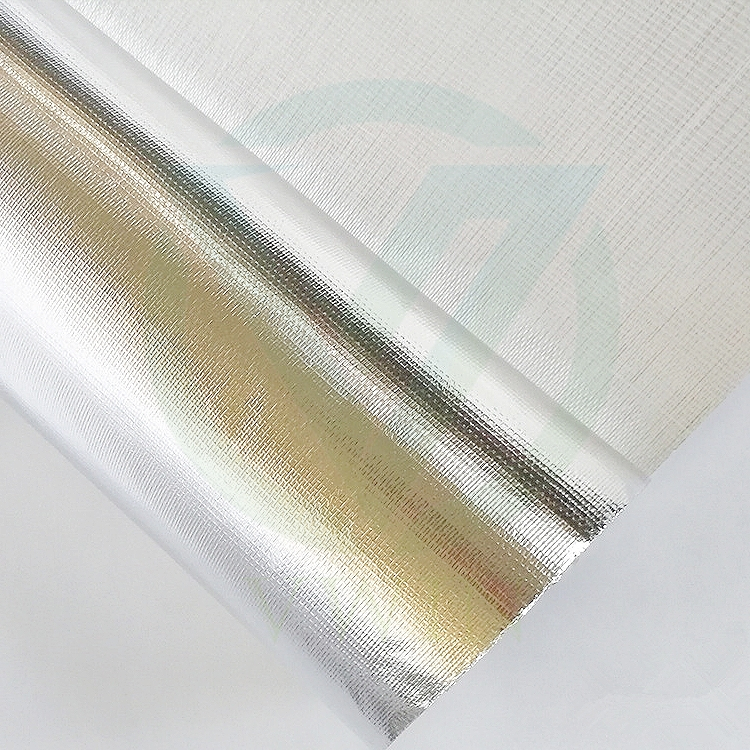

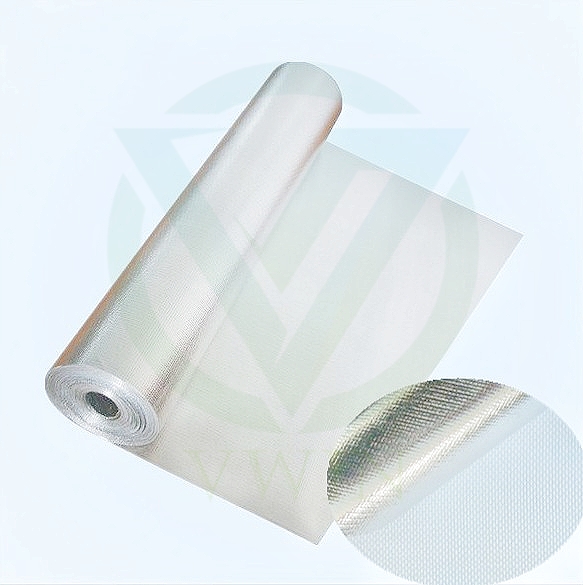

Aluminum foil fiberglass cloth is a composite industrial material that combines the characteristics of fiberglass cloth and aluminum foil, and is widely used in fields such as insulation, heat preservation, and fire prevention.
①Substrate：Made of high-strength glass fiber cloth (medium alkali or alkali free glass fiber), with high temperature resistance, corrosion resistance, and insulation properties.
②Coating：Single or double-sided composite high-purity aluminum foil (usually over 99% pure aluminum), bonded by adhesive or high-temperature pressing process.
Structure
● Aluminum Foil+fiberglass cloth
● PE+Aluminum Foil+fiberglass cloth
● Aluminum Foil+fiberglass cloth+Aluminum Foil
● Aluminum Foil/PET+fiberglass cloth+Aluminum Foil/PET
● Perforated Aluminum Foil+fiberglass cloth+Aluminum Foil
● Printed Aluminum Foil+fiberglass cloth (+ Aluminum Foil)
● MPET+fiberglass cloth
● MPET+fiberglass cloth+MPET
● Waterproof: The use of aluminum foil paper also endows aluminum foil fiberglass cloth with excellent waterproof performance. Even in humid environments, it can effectively prevent moisture infiltration and protect pipelines from corrosion:
● Reflective insulation: The core of aluminum foil fiberglass cloth lies in its use of high-quality Aluminum foil paper, which can reflect most of the solar radiation, reduce heat transfer to the interior of the pipeline, and achieve the effect of cooling. Meanwhile, the special coating on its surface can further enhance the reflectivity, making the insulation effect more significant
● High temperature resistance: It can withstand temperatures ranging from -50 ℃ to 1200 ℃ for a long time (some models can reach temperatures above 1200 ℃).
● Fireproof and Flame retardant: Fiberglass itself is non flammable (Class A fireproof), and aluminum foil further blocks the spread of flames.The flame retardant properties of aluminum foil fiberglass cloth provide an additional safety barrier for pipeline systems, which can effectively delay the spread of fire in the event of a fire.
● Corrosion and aging resistance: Suitable for humid and chemical environments, with a long service life.
● Easy installation: The waterproof self-adhesive properties of aluminum foil fiberglass cloth make the installation process exceptionally simple and fast, without the need for additional fixing tools or glue, greatly improving work efficiency.
● Strong adaptability: Aluminum foil fiberglass cloth has good temperature resistance, can adapt to temperature changes in different environments, maintain stability, and will not easily melt or decompose, ensuring the continuous normal operation of pipeline systems
Benefits
Aluminum foil fiberglass cloth can provide significant benefits to customers in pipeline protection, air conditioning systems, fire safety, installation convenience, high temperature resistance, noise reduction, and fresh air ventilation.
Applications
● Building Insulation materials：such as making fireproof curtains, vertical partitions, fire-resistant boards, insulation felt, etc. Due to its excellent flame retardant and thermal insulation properties, it can effectively reduce the incidence of fire accidents, protect personal safety and building property safety. In addition, aluminum foil fiberglass cloth can also be used to make paint free exterior wall insulation systems for buildings, which are used for energy conservation, emission reduction, insulation and noise reduction, and to improve the energy efficiency of buildings.
● Electronic products：aluminum foil fiberglass cloth has good electromagnetic shielding performance and can be used as an electromagnetic interference shielding material for electronic products, such as electromagnetic shielding films for mobile phones, computers, tablets and other electronic products. In addition, aluminum foil fiberglass cloth can also be used to make electromagnetic wave shielding boxes, which are applied in fields such as communication and radar.
● Automobiles and ships：aluminum foil fiberglass cloth can be used to make car engine compartment sound insulation panels for sound insulation and noise reduction, improving the comfort of passengers inside the car. In addition, aluminum foil fiberglass cloth can also be used as insulation material for cars and ships to reduce heat transfer and improve fuel efficiency.
● Insulated box：used to make insulated boxes for imported high-end food, medicine, cosmetics, etc., to prevent product deterioration
● Healthcare：aluminum foil fiberglass cloth can be used to make medical cold compress packs, cold and hot patches, and other medical devices.
● Industrial protection：Aluminum foil fiberglass cloth is suitable for industrial protection, pipeline protection, building sound insulation, equipment moisture-proof, anti-corrosion packaging, insulation packaging and other scenarios
● Pipeline protection wrapping：Aluminum foil composite fiberglass cloth is widely used in pipeline protection wrapping, fireproof curtains and other insulation systems
● Suitable for insulation and fire prevention of high-speed rail, bullet trains and other rail transit vehicles
● Photovoltaic power station reflective insulation
● Pack：Moisture-proof and mold proof packaging materials,to make Tape
● Thermal insulation, heat preservation, noise reduction, and shock absorption in aerospace
Integrated Manufacturer, Direct Factory Pricing
We are a self-owned factory with over 15 years of experience in aluminum foil production. Every roll is produced in-house, from raw material sourcing to finished packaging, strictly controlled at every stage to ensure consistent quality and competitive pricing without middleman markups.
Superior Performance Backed by Data
Our aluminum foil delivers uniform thickness (±3% tolerance), excellent tear resistance, and stable performance across extreme temperatures. Verified by third-party testing and trusted by thousands of clients worldwide for reliable, repeatable results.
Global Export Expertise, Tailored Service
With 10+ years of export experience serving markets across North America, Europe, Southeast Asia, the Middle East, and Africa, we understand diverse regulatory requirements, packaging preferences, and logistics standards — offering seamless cross-border cooperation.
Full Customization for Any Application
One size doesn't fit all. We offer flexible customization on thickness ,width,length, packaging format (kraft box, PE bag, color box, etc.), and private labeling — perfectly matching your specific business needs.
Leveraging fully automated production lines and precision winding technology, we maintain complete control over manufacturing from raw materials to finished goods. Our rigorous quality control ensures high strength and consistency, while standardized warehousing guarantees efficient and reliable global delivery.
● Professional Customization: Provide one-to-one size matching and scheme customization according to customer equipment parameters.
● Quality Assurance: Strict factory inspection, high-standard materials, stable product quality.
● Fast Delivery: Sufficient raw material inventory, shorten production cycle for wholesale orders,fastest 1-day shipping.
● After-sales Support: Long-term after-sales consultation, installation guidance and product maintenance guidance.
● Wholesale Service: Support bulk wholesale, project cooperation, OEM/ODM customization.
● CE Certified — Meets European Union safety, health, and environmental protection requirements.
● ISO 9001:2015 — Quality management system certification.
● RoHS Compliant — Free from hazardous substances.
● SGS Audited — Factory and product quality verified by third-party inspection.
