Salt Spray Resistance Testing of Foil Woven Fabric: Material Selection Basis for Marine and Coastal Projects

An engineer at a Persian Gulf LNG plant emailed us last year, and you could feel the exhaustion in every line. Six months earlier, his team installed a batch of radiant barrier material from another supplier — a standard aluminum foil composite. It looked fine during installation. Within half a year, seaward-facing panels showed visible white powdering, and reflectance dropped from 95% to below 80%. His question was direct: can your foil woven fabric survive five years here?

That question isn't unique. Across the Middle East, Southeast Asia, northern Australia, and the Caribbean, nearly every industrial and civil project near a coastline faces the same technical headache: chloride-rich atmospheres eating through metal materials. When foil woven fabric serves as the core component of radiant barriers and thermal insulation systems, its salt spray resistance directly determines how long the installation remains effective. This article breaks down the material selection logic for foil woven fabric in marine and coastal applications, starting from salt spray testing fundamentals.

What Salt Spray Actually Attacks

Plenty of people assume salt spray corrosion is just "saltwater soaking through metal." The reality is far more insidious. Chloride ions (Cl⁻) in marine atmospheres are extremely small and penetrate through microscopic defects in the aluminum oxide layer (Al₂O₃) on the foil surface, triggering localized pitting corrosion. Once pitting penetrates the foil, moisture follows fiber gaps in the woven substrate deeper, eventually causing interlaminar delamination and substrate degradation.

Galvanic corrosion compounds the problem. If the aluminum foil contacts stainless steel fasteners, copper connectors, or any metal with a higher electrode potential, the aluminum becomes the anode and corrodes rapidly in humid salt spray. We saw this firsthand on a Qatar project — within three weeks, visible white corrosion products formed where the foil barrier met copper pipe brackets.

Temperature, humidity, and salt deposition rate stack together into a corrosion acceleration triangle. Tropical coastal areas can see salt deposition rates three to five times higher than temperate regions, and every 10°C increase roughly doubles corrosion reaction rates. That's why the same product performing fine on a Norwegian coastline might fail rapidly in Dubai or Miami.

Salt Spray Testing: Compressing a Decade Into a Thousand Hours

Since natural-environment corrosion testing takes years or decades, the industry developed accelerated simulation methods. Two standards dominate globally: ASTM B117 and ISO 9227. Both share identical core parameters — 5% NaCl solution, chamber temperature at 35°C ± 2°C, salt fog collection rate of 1.0 to 2.0 ml per 80 cm² per hour, pH between 6.5 and 7.2.

Specimens stay inside the salt spray chamber under continuous exposure. At set intervals — typically 500 and 1,000 hours — they're pulled for visual inspection. Ratings follow ASTM D714 for blister grade and ASTM D610 for rust grade, with grade 10 meaning no visible corrosion and grade 0 meaning corrosion covers over 50% of the surface.

For marine engineering materials, the industry generally requires at least 1,000 hours in neutral salt spray (NSS) testing with a rating no lower than grade 8. High-end projects — Middle Eastern oil and gas infrastructure, Southeast Asian coastal power plants — often push for 1,500 or 2,000 hours without visible corrosion.

One common confusion worth clearing up: NSS and CASS (Copper-Accelerated Acetic Acid Salt Spray) are fundamentally different systems. NSS simulates standard marine atmospheric conditions, while CASS adds copper chloride and raises temperature to 50°C, amplifying corrosion intensity five to eight times. Using CASS results to claim NSS compliance looks good on paper, but the engineering equivalence simply isn't there.

Where Does Foil Woven Fabric Draw Its Salt Spray Defense Line?

Before answering, let's establish a basic fact: pure aluminum foil is not inherently "immune" to salt spray. Aluminum's standard electrode potential sits at -1.66V, making it thermodynamically active. It performs well in most atmospheres because the moment it's exposed to air, it forms a dense oxide film roughly 2 to 5 nanometers thick — a physical barrier blocking oxygen and moisture from the base metal.

In salt spray environments, chloride ions progressively undermine that oxide layer. Once breached, corrosion drives deeper.

The salt spray resistance strategy of foil woven fabric is essentially a multi-layer cooperative defense system.

The first line of defense is alloy selection. Marine-grade foil woven fabrics typically use 5xxx series aluminum-magnesium alloys — grades like 5052 and 5754 — as the foil substrate. With magnesium content between 2.5% and 4.0%, these alloys form a denser, more stable oxide film with significantly better chloride resistance than standard 1xxx series pure aluminum. Our test data shows 5052 alloy foil maintaining grade 9–10 after 1,000 hours NSS (5% NaCl, 35°C), while 1235 pure aluminum shows scattered pitting at just 500 hours.

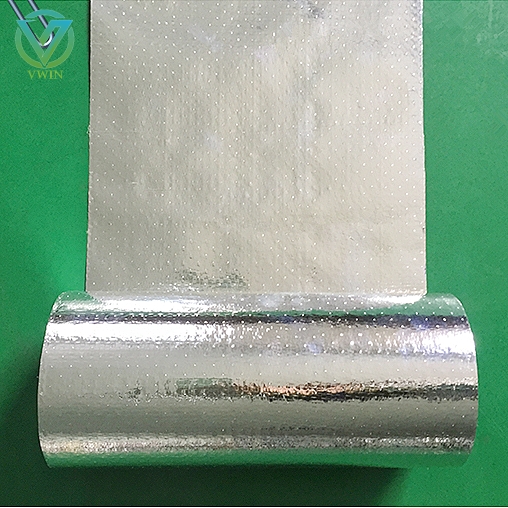

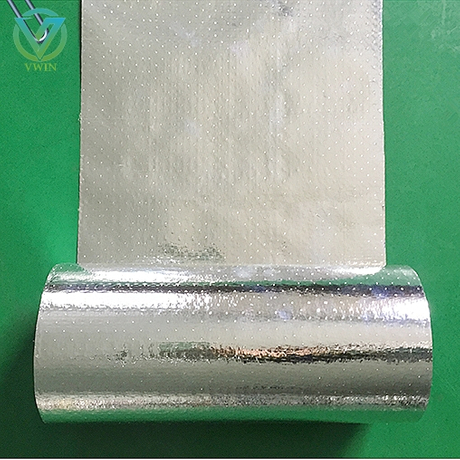

The second line is composite structure. VWIN's marine-grade foil woven fabric uses a multi-layer build: corrosion-resistant aluminum alloy foil on the outside, high-strength polyethylene or polypropylene woven base fabric in the middle, and functional coatings on the bottom depending on the application. Even if minor corrosion forms on the foil surface, the woven base fabric maintains structural integrity — unlike pure aluminum, which tears rapidly once pinholes begin.

The third line is edge sealing. Unsealed cut edges let salt fog infiltrate through capillary action along the foil-substrate interface, causing delamination from the edge inward. Our thermal-edge-sealing process has shown no visible edge corrosion through 1,500 hours NSS, while unsealed specimens showed edge delamination by 800 hours.

What Data Should You Actually Look At?

When evaluating salt spray test reports from suppliers, a few data points deserve close attention.

First, the report must clearly state which test standard and conditions were used — NSS or CASS, solution concentration, temperature, pH. A report that simply says "passed salt spray testing" without specifics carries almost no value.

Second, examine test duration alongside rating grades. Grade 10 at 1,000 hours NSS versus grade 8 at the same duration tells a very different story — one means virtually no corrosion, the other may already show scattered pitting.

Third, check specimen condition. Were they tested as finished products with edge sealing and full composite layers, or as bare foil coupons? Only finished-product results reflect real installed performance.

Lastly, if your project site has specific climate data, ask the supplier for an accelerated life prediction based on local conditions. These models carry inherent error, but remain useful for comparing material options.

Closing Thoughts

Marine and coastal environments don't forgive shortcuts. Salt spray testing isn't about a simple pass-or-fail verdict — it's about helping engineers build clear performance expectations before costly field failures occur. Foil woven fabric's application outlook in these environments is genuinely positive, provided the right alloy system, composite architecture, and edge treatment are specified.

VWIN has extensive experience supplying foil woven fabric for marine and coastal projects worldwide. Our products pass ASTM B117-compliant NSS testing beyond 1,000 hours, and we develop customized material solutions based on your project's specific climate conditions. If you're specifying materials for a coastal installation, reach out to our technical team for detailed salt spray test reports and application recommendations.
