The Cold Storage Electricity Bill That Made Me Take Energy Retrofits Seriously
Last winter, a friend who runs a food storage warehouse vented to me. His cold storage facility's monthly electricity bill topped $7,000 — roughly 18% of total operating costs. He hired an energy audit firm. Their report pointed to one number: every time the door opened, the compressor needed an extra 15 minutes to recover the lost temperature.
He did the math. During peak hours, the door opened 17 times per hour. Over a full day, that single problem was costing him over $100.
"Should I replace the door?" he asked.
The auditor shook his head. "Replacing the door helps, but you can't just replace the door. Cold storage energy efficiency is a system problem."
Start with the Leaks: The Most Overlooked Retrofit Starting Point
Most cold storage operators think energy retrofitting means swapping out compressors or upgrading refrigeration systems. That's valid — but the auditor's first recommendation caught my friend off guard. Fix the leaks first.
Worn door seals, warped door frames, missing strip curtains — these look like minor issues, but they quietly eat electricity every single day. A quality door gasket replacement costs under $100, yet it can save thousands per year in energy costs. The logic is simple: a compromised seal lets warm, humid air infiltrate continuously, forcing the compressor to work overtime.
Then there are strip curtains and rapid doors. Many cold storage doorways stay open throughout the day — personnel and forklifts moving through, cold air pouring out. Installing rapid-roll doors or PVC strip curtains can cut air exchange by 30-70%. One distribution center measured a 15% drop in refrigeration energy consumption after installing high-speed doors alone.
Where Night Curtains Fit: More Critical Than You Think
If door seals and strip curtains solve "dynamic air leakage," night curtains address "static heat loss."

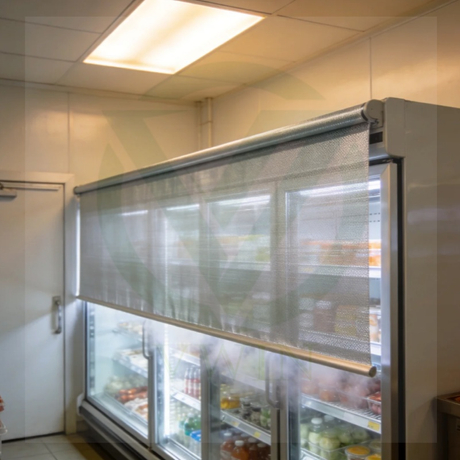

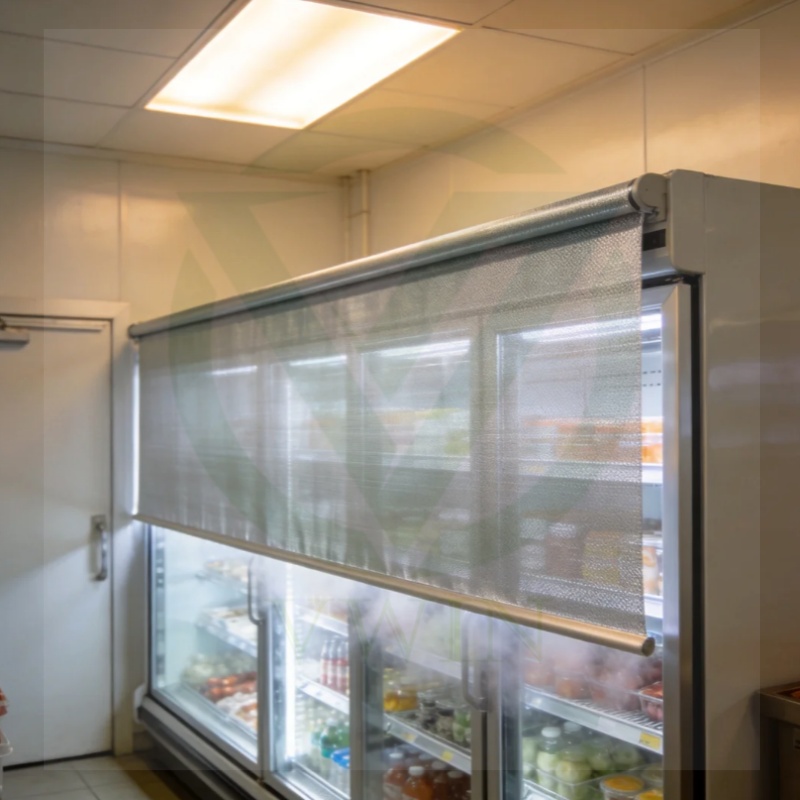

Open display cases, horizontal freezers, and multi-deck cases in cold storage radiate heat constantly during non-operating hours. An uncovered open case consumes 30-50% more energy around the clock than a covered one. Installing night curtains — whether aluminum foil, fabric, or transparent plastic — on these cases delivers immediate nighttime energy reduction.
Southern California Edison's field data is compelling: deploying night covers saves 36% energy per hour of use, with some configurations reaching 50%. A mid-size supermarket with forty cases using night curtains overnight saves over 370,000 kWh annually. Converted to carbon, that's nearly 73 tonnes of CO₂ equivalent avoided each year.
This retrofit requires no system shutdown, no piping modifications, no compressor replacement. The investment might be a fraction of a single compressor's cost. Payback typically runs 6-12 months.
Building Envelope and Equipment Upgrades: The Bigger-Ticket Fixes
Once the leaks are sealed, the next layer involves equipment upgrades.
Insulation retrofitting is the most direct approach. Many cold storage facilities over a decade old still use EPS insulation panels with high thermal conductivity. Switching to PIR panels drops thermal conductivity to 0.022 W/mK, cutting refrigeration energy consumption by 15-25%. This is a significant investment, but the long payback horizon — typically 5-8 years — makes it worthwhile for facilities planning to operate long-term.
Variable frequency drive (VFD) compressor retrofits also deserve consideration. Traditional fixed-speed compressors run full-on or full-off, wasting enormous energy. Adding a VFD lets the compressor modulate speed based on actual load, saving 15-30% with payback in 12-18 months.
LED lighting is another low-hanging fruit. Old incandescent and fluorescent bulbs generate light and heat simultaneously inside the cold room — heat the compressor then has to remove. LEDs cut power consumption by 80% and dramatically reduce heat output. Many utilities offer rebates for this upgrade.
From the Manufacturer's View: Why Night Curtains Are a Green Retrofit Essential
Many people equate energy retrofitting with equipment upgrades. But from a lifecycle carbon perspective, a single night curtain's "carbon ROI" might be the highest of all.
The carbon emissions from manufacturing one night curtain are typically recovered within 6-12 months of energy savings. Compare that to replacing a compressor — carbon payback often takes 5-10 years. And night curtains don't depend on grid efficiency. They don't save energy by "consuming electricity more efficiently." They save energy by "reducing the need to consume electricity in the first place." Those are two fundamentally different decarbonization pathways.
The Right Sequence for Cold Storage Energy Retrofits
Clients often come to us asking for cold storage energy retrofit solutions. Our advice is usually the same: don't rush to buy equipment. Start with an energy audit. Figure out where your electricity is actually going — door leaks? Poor insulation? Aging compressor? Wasteful lighting?
Sequence matters. Fix the leaks first (door seals, strip curtains, night curtains) — lowest cost, fastest impact. Then upgrade lighting and fans (LED, EC motors) — moderate investment, clear returns. Save the big-ticket items (insulation panels, compressor replacement, full system overhaul) for last — those are the "root cause" solutions.
