A Cell Swelled Up at the Customer's Site. The Problem Was Invisible.
Last year, a battery pack integrator in Southeast Asia pulled a batch of 280Ah LFP pouch cells from field service after just six months. The cells were bulging. When the failure analysis team cracked them open in a glovebox, they found hydrofluoric acid in the electrolyte. HF is what you get when water molecules react with the lithium salt — LiPF₆ — dissolved in the electrolyte. The moisture had leaked in through the pouch film itself. Not the seal edge. Not the tab weld. The laminate.
This kind of failure isn't unusual in the industry. Lithium pouch cells are absurdly sensitive to moisture. As little as 20 ppm of water contamination in the electrolyte triggers measurable hydrogen gas generation (Why Do Lithium Polymer Batteries Swell, VTC Power). Water reacts with LiPF₆ to form HF, and HF dissolves the transition metals — manganese, cobalt, nickel — out of the cathode structure. Capacity drops. Internal resistance climbs. Gas accumulates. Eventually, the cell swells, the separator deforms, and you're staring at a thermal runaway event that could have been prevented with a better barrier film.
The whole failure cascade starts with a fraction of a gram of water vapor getting past a film that was supposed to stop it.
The Pouch Film Is the Only Thing Standing Between Your Cell and the Outside World
Prismatic cells have steel or aluminum cans. Cylindrical cells have metal cases with crimped seals. Pouch cells have none of that. The entire mechanical, moisture, and chemical protection of a pouch cell rests on a laminate that's roughly 100-150 microns thick. Outside layer: nylon, handling abrasion and puncture resistance. Middle layer: aluminum foil, the moisture barrier core. Inner layer: modified cast polypropylene (CPP), providing heat-seal integrity and electrolyte chemical resistance. Three layers, each one doing something the others can't. If any single layer fails, the cell's safety margin is gone.
This is why aluminum-plastic composite film holds a position in the lithium battery material stack that's far more critical than its thin profile suggests. The global market for lithium battery aluminum-plastic film was valued at approximately $1.48 billion in 2025 and is projected to reach $2.75 billion by 2034 at a 7.1% CAGR (Lithium Battery Aluminum-plastic Film Market, 24ChemicalResearch). Another estimate puts the 2025 market at $2.8 billion, growing to $5.3 billion by 2033 at 8.2% CAGR (Dataintelo). Either way, the growth driver is the same: EV and energy storage adoption of pouch cell architecture is accelerating, and each GWh of pouch battery production consumes roughly 11.2 million square meters of aluminum laminated film.
What Barrier Performance Actually Means
The core metric for electrolyte barrier capability is water vapor transmission rate (WVTR). Multi-layer aluminum-plastic laminates for battery applications achieve WVTR values below 0.1 g/m²·day, with high-end products dropping to 0.003 g/m²·day or lower. To put that in perspective: under standard test conditions, less than one-thousandth of a gram of water vapor passes through each square meter of film per day. For a cell filled with electrolyte that reacts violently with trace moisture, this is the line between reliable operation and catastrophic failure.
But moisture barrier is only half the job. The film also has to resist the electrolyte itself. Lithium battery electrolytes contain organic solvents — ethylene carbonate (EC), dimethyl carbonate (DMC), ethyl methyl carbonate (EMC) — that swell and dissolve many common polymers. The inner CPP layer exists because its specific formulation resists chemical attack from these solvents over the cell's full design life. If the inner layer degrades, the aluminum foil layer is directly exposed to the electrolyte and corrodes through in a matter of weeks.
Insulation Performance — The Other Half Nobody Talks About
Barrier gets the attention, but the pouch film also has to electrically insulate the cell's internal components from the conductive aluminum layer sandwiched in the middle of the laminate.
The positive and negative electrode tabs extend out through the heat-sealed edges of the pouch. Between those tabs and the aluminum core of the film, there must be sufficient dielectric isolation. If the heat-sealing process goes wrong — excessive temperature, wrong pressure, dwell time too long — the inner insulating layer can break down at the seal. Once that happens, the energized tab can discharge through the aluminum layer to the outside of the cell. At best, you get a parasitic short. At worst, you get a fire.
Industry-standard pouch film requires dielectric strength of at least 20 kV/mm, with some power-grade specifications calling for higher. And here's where it gets tricky: after the film is deep-drawn into the pouch shape, the corner radii experience material thinning of 15-25% per millimeter of draw depth. The insulation at those corners is now thinner than it was on the flat sheet. If the original film didn't have enough margin, the drawn corner becomes the weak point — both for barrier and for insulation.
From Material Specs to Production Reality
Lab numbers look great on a datasheet. The real test is the production line. The film goes through deep drawing (typically ≥8mm, with high-capacity cells pushing 12mm+), tab heat-sealing, electrolyte filling, formation cycling, and capacity grading. During deep drawing, the aluminum layer develops micro-cracks and localized thinning. If the aluminum alloy composition and annealing process aren't dialed in correctly, barrier performance crashes after forming.
Heat sealing is the other critical node. Seal strength between the inner CPP layer and the metal tab needs to exceed 30N/15mm. The window is tight — too hot and you puncture the insulating layer, too cool and the seal doesn't hold. After aging at 85°C/85%RH for 1,000 hours, the sealed area should show zero delamination.
Then there's the high-temperature storage test. Good pouch film holds together at 150°C for one hour without blistering, bubbling, or adhesive failure. It's a brutal check, but it simulates what happens when a cell sees real thermal stress in the field.
VWIN Foil's Position in Pouch Cell Packaging

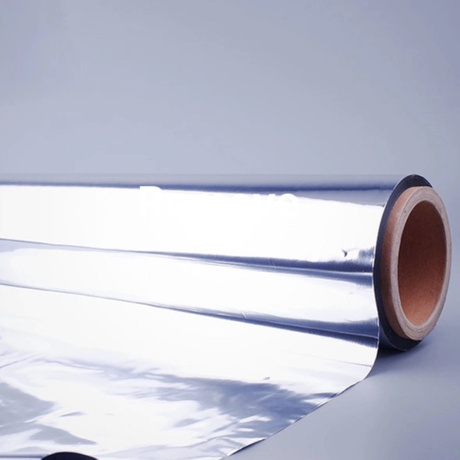

VWIN Foil supplies aluminum-plastic composite films across three application tiers — consumer electronics, power/EV, and energy storage — in standard thicknesses of 88μm, 113μm, and 152μm. The aluminum core uses high-purity alloy (≥99.5%), the outer nylon layer delivers puncture and scratch resistance, and the inner layer features a proprietary electrolyte-resistant modified CPP formulation compatible with LFP, NCM, and LMO electrolyte systems.
Product specifications: WVTR ≤0.05 g/m²·day (tighter on request), deep-draw capability ≥8.5mm, no delamination after 150°C/1h, dielectric strength ≥25 kV/mm, heat-seal strength ≥35N/15mm. Every production batch undergoes full-chain quality control — aluminum foil pinhole inspection, interlayer peel strength testing, and finished-product WVTR spot-checks.
