Window-Panel Night Blinds: A New Design for Display Visibility and Energy Saving

You pull down the night blind, and just like that, your display case vanishes into darkness.

This has been a quiet frustration for retailers for longer than you'd think. You need an insulating cover overnight to keep energy costs in check, but the moment a traditional opaque night curtain drops, your display case becomes a black box. Every carefully arranged product, every brand label, every color-coordinated shelf — gone. Come morning, before you can even start selling, someone has to pull up the curtain, straighten whatever shifted during the day, wipe condensation off the walls, and check whether any dairy products went off overnight because the case temperature swung while the blind was down.

So here's the question that's been nagging at store operators for a while: is there a way to cut your overnight energy bill by a third without turning your display cases into blind boxes?

Transparent Night Blinds: Not a New Idea, But Finally Done Right

The concept of a transparent insulating curtain isn't exactly groundbreaking. Clear PVC strip curtains have been hanging in cold storage doorways and factory floors for decades — nobody needs an introduction to those. But turning transparent material into a roll-type night blind for commercial display cases — one that rolls up and down like a window shade, fits the exact dimensions of the case, includes a deceleration mechanism, and survives hundreds of daily cycles without curling or going brittle — that's a product solution that has only matured in recent years.

The real challenge is the material itself. Standard PVC gets brittle at sub-zero temperatures. Roll and fold it a few times at -20°C and it cracks. A transparent night blind for a refrigerated display case has to satisfy a demanding list of requirements simultaneously: low-temperature flexibility (surviving repeated rolling at -35°C without splitting), high light transmission (above 80%), anti-condensation surface properties (no fogging after being deployed overnight), and enough tear resistance to handle daily manual operation over thousands of cycles.

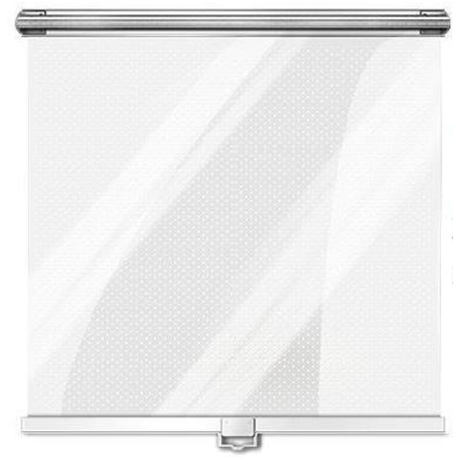

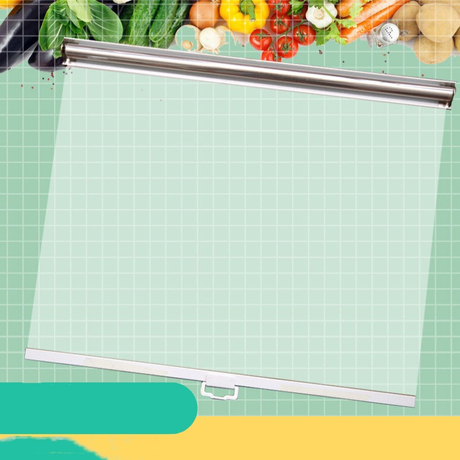

Two main approaches have emerged. One is the transparent PVC strip curtain — vertical strips of clear PVC hanging side by side with 50% overlap, relying on their own weight to fall closed. The other is a transparent PET film roller blind — a single continuous sheet of film that rolls into a housing at the top of the case, operated exactly the same way as a traditional aluminum foil night blind.

Why Visibility Matters More Than You'd Assume

"It's nighttime — nobody's shopping anyway." That's the instinctive objection. But the actual operational math tells a different story.

First, there's morning efficiency. With a transparent blind down all night, your products are still visible the moment you walk in. Staff can immediately spot problems — damaged packaging, shifted items, condensation on the case walls — and deal with them before the first customer arrives. With an opaque curtain, that inspection has to wait until everything is pulled up and the lights are on.

Then there's brand presence. Many convenience store chains and specialty grocery operators have built their late-night identity around the idea of a lit, visible display. Even at 2 a.m. with minimal foot traffic, someone walking past a glowing window and seeing neat rows of cold drinks gets a subliminal message: this place is open, this place is cared for. A darked-out case says the opposite.

And then there's the hard data on visibility and impulse buying. A study funded by the U.S. Environmental Protection Agency (EPA) and ASHRAE compared open display cases against glass-doored cases in supermarkets. The finding: open cases drive significantly higher impulse purchase rates, primarily because there's no physical barrier between the shopper and the product — the psychological cost of grabbing something is essentially zero. A transparent night blind can't replicate the full open-case experience, but it does maintain visual accessibility during overnight and off-peak hours. For a customer who might walk in at any moment, the "one look and I might buy it" trigger stays alive.

Energy Performance: Transparent Holds Its Own

Traditional aluminum foil night blinds deliver 30-35% energy savings — that's well-established industry data. Transparent night blinds work through a slightly different mechanism. They don't rely on reflectivity (aluminum foil boasts 95-97% reflectivity). Instead, they create a solid physical barrier — the continuous film forms a tight seal that blocks cold air from escaping and warm air from seeping in.

Real-world data from PVC strip curtain manufacturers shows that transparent strip curtains can reduce energy consumption fluctuations by 30-40% in cold storage applications. For commercial display case scenarios, transparent roller blinds typically deliver 25-35% energy savings, depending on case type, ambient temperature differential, and coverage duration. The gap versus top-tier aluminum foil blinds is narrow — especially once you factor in the value of maintaining overnight visibility.

The U.S. Department of Energy (DOE), in its commercial refrigeration test procedure, defines night curtains as key accessories for reducing "compressor loads and defrost cycles," noting specifically that "low-emissivity materials like aluminum are much more effective at reducing radiative heat loss." But that's radiative heat loss — and in a closed store at night, radiation is minimal. Convection and conduction dominate. A transparent blind performs at essentially the same level as an aluminum foil blind when it comes to blocking convective air exchange.

Where Transparent Night Blinds Shine

Beverage display cases are the natural home. Bottled drinks, canned sodas, craft beer — consumers need to see the product before they reach for it. Pull a transparent blind down at night, and the case keeps saving energy while the products sit there catching the light.

Front-facing convenience store cases. Stores with glass frontages that keep their lights on overnight gain a near-zero-cost extension of display hours. The transparent blind saves energy while the products remain visible to anyone walking past.

Dairy and fresh food cases. Yogurt, puddings, cut fruit — items that are both temperature-sensitive and visually driven. Behind a transparent blind, they stay cold and stable overnight without that "stale case" feeling that comes from hours of total darkness.

The Bottom Line

Retail is about letting your product do the talking. Lighting does that. Shelf arrangement does that. Case visibility does that. For years, operators had to choose between overnight energy savings and keeping their display visible. The transparent window-panel night blind dissolves that trade-off.

The technology isn't mysterious. It's a clear piece of material — but behind it sits years of work on low-temperature flexibility, anti-condensation coatings, and fatigue-resistant rolling performance. Get it right, and your display case keeps working for you even when the store is closed.
