What To Do If Aluminum Foil Woven Fabric Wrinkles During Installation? Tension Control And The Selection of Installation Tools

A Hard Lesson from the Field

Last summer, a warehouse retrofit project in Texas ran into trouble. The installation crew, wanting to make the foil woven fabric look "nice and tight," yanked the material hard as they stretched it across the roof purlins. It looked smooth when they finished — until two weeks later, when micro-cracks started appearing in the aluminum layer. Reflectivity dropped from 97% to under 70%. The project manager called asking if the material was defective. It wasn't. The real culprit was improper tension during installation — the foil layer had been stretched beyond its limit, creating invisible cracks.

This incident highlights something I see all too often: customers buy high-quality foil woven fabric, then lose its performance during installation. So let's talk about what causes wrinkles, how to control tension properly, and which tools actually make a difference.

Why Wrinkles Happen

Wrinkles in foil woven fabric come down to three forces that aren't balanced: longitudinal pull, transverse tension, and the material's own weight.

Understanding the structure helps explain why. Foil woven fabric is typically a three-layer sandwich — woven polyethylene on both sides, aluminum foil in the middle. This gives you tensile strength plus reflective performance. But here's the catch: aluminum foil has an elongation rate under 2%, while the PET woven layer stretches 20-30%. When you pull too hard, the woven fabric is still within its elastic range, but the aluminum has already suffered permanent plastic deformation or micro-cracking.

Wrinkles show up in three common ways:

Over-stretching. Installers pull the material drum-tight for a flat appearance. During the day, heat causes expansion and the wrinkles flatten out; at night, contraction brings them back — worse each cycle. Eventually the aluminum layer cracks.

Too few or unevenly spaced fasteners. With only a handful of attachment points, the material sag between them under its own weight and wind load. Those sag zones become wrinkle zones.

Improper overlapping. Too much overlap or inconsistent laying direction creates a thickness difference that pushes the surface into bumps and ridges.

Tension Control: The Core Principle

Here's the number to remember: installation tension should not exceed 30% of the woven layer's breaking strength. If your PET woven layer has a longitudinal breaking strength of 500N/25mm, keep installation tension at or below 150N/25mm.

How do you judge that in practice? A few rules of thumb:

The "lay flat" principle. After unrolling, let the material settle naturally onto the substrate. Smooth it out from center to edges with your hand — don't yank it. The material should rest against the surface, not strain against it.

Build in a little slack. For large roof or wall installations, allow 1-2% extra length for thermal expansion and contraction. Experienced installers let the material sag about 5mm per meter between fasteners — just enough to accommodate temperature swings without buckling.

Fasten from the center outward. Regardless of laying direction, secure the midpoint first, then work toward both ends. This prevents material from bunching up on one side and creating wrinkles.

Choosing the Right Tools

Your tools directly affect how well you control tension. Here's what matters:

Staple gun. Go with a heavy-duty pneumatic model with adjustable force rather than a manual one. Pneumatic guns deliver consistent driving force every time, so one fastener isn't tighter or looser than the next. Use stainless steel or galvanized staples to prevent rust. Space fasteners no more than 300mm (about 12 inches) apart. Pro tip: don't drive staples completely flush — leave about 1mm of play so the material has room to shift slightly during temperature changes, avoiding stress concentration at any single point.

Foil tape. For seams, only use dedicated aluminum foil tape at least 80mm wide, fully covering the overlap area. Never use ordinary tape or acid-based tape — they corrode the aluminum layer. After applying tape, press it down with a dedicated pressure roller (50-60 Shore A hardness) to eliminate air bubbles.

Pressure roller. A hard plastic roller distributes pressure evenly during bonding and seaming. It's far more effective than pressing with your palm, especially on large jobs.

Cutting tools. Always use a sharp utility knife or scissors. Clean, straight cuts prevent edge curling that leads to irregular wrinkles after installation.

Laser level. Particularly useful for large-area installations — it keeps your lines straight and prevents cumulative alignment errors that turn into wrinkles across the full span.

Scene-Specific Tips

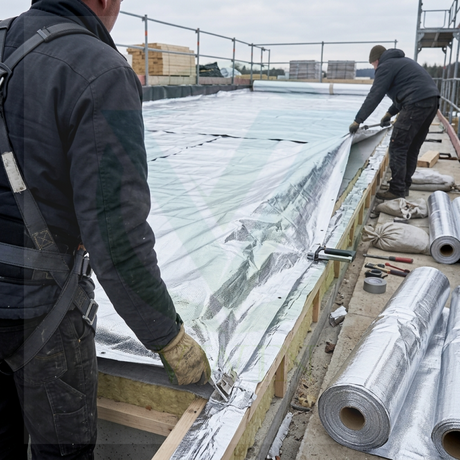

Roof installation: Lay panels along rafters, staple at 300mm intervals, and allow about 5mm of sag per meter. Overlap sheets by 75-100mm and seal the entire overlap with foil tape. Around pipe penetrations, use counter-battens to prevent tearing or wrinkling at the cutout.

Wall installation: Work bottom to top — secure the bottom edge first, then unroll upward and fasten at the top. Overlap vertical seams by at least 50mm with full-width foil tape. Avoid installing in crosswinds; wind can flutter unfixed material and create wrinkles before you secure it.

Pipe wrapping: Wrap with light tension — don't compress the insulation underneath. Overlap seams by at least 50mm and seal with foil tape. At pipe elbows, wrinkles are almost inevitable if you try to bend the material around the curve. The correct approach is to cut the material at an angle and piece it together, not force it.

How VWIN's Products Help

VWIN's foil woven fabric is designed with installability in mind. Our woven substrate uses high-strength PET/PP yarns, with longitudinal breaking strength of 200-500N/25mm and cross-direction strength of 150-400N/25mm. That generous margin means normal installation tension stays well within the safe zone — even if an installer pulls a little too hard, the aluminum layer is unlikely to crack.

The aluminum foil is bonded to the woven substrate using a dual-sided lamination process with high interlayer adhesion, so it resists delamination even when tension fluctuates during temperature swings. Width options range from 1 meter to 6 meters, which drastically reduces the number of seam overlaps — fewer seams means fewer opportunities for wrinkles.

Every shipment can include installation guidance documentation covering recommended tension values, fastener spacing, and overlapping methods. For challenging projects — curved surfaces, long spans, or extreme temperature environments — our technical team can provide site-specific installation recommendations.

If you're dealing with wrinkle issues or have questions about installation technique, reach out with photos of your situation and we'll help diagnose the problem.
