Thermal Insulation of Steel Structure Factory Roofs with Aluminum Foil Woven Fabric: Reducing Summer Indoor Temperatures

Mid-July, a factory in Gujarat, India. Outdoor temperature: 44°C. The steel structure roof had been baking in direct sunlight all day, and the infrared thermometer reading on the underside of the color steel sheet was stuck at 82°C. There was no air conditioning inside the workshop — not because the owner didn't want it, but because installing it would be pointless. A 4,000 square-meter open space with zero roof insulation simply can't hold any cooling. Workers started showing heat exhaustion symptoms after 2 p.m., production line efficiency dropped by a third, and defect rates spiked.

This scene is painfully common across tropical and subtropical regions. Steel structure factories are fast to build, span large distances, and cost less — but in summer they turn into giant ovens. The problem sits in the roof. More precisely, it sits in the wrong insulation solution. Today we discuss a material that's gaining adoption across more and more factories: aluminum foil woven fabric composite.

Why Steel Roofs Get So Unbearably Hot

To understand the solution, you first need to understand where the problem actually comes from. A metal roof's thermal problem isn't singular — it's three layers stacked on top of each other.

The first is radiant heat. A bare galvalume steel panel, under summer noon sun, can easily exceed 65°C and reach as high as 93°C on its surface. After absorbing solar radiation energy, the panel continuously emits long-wave infrared downward into the interior space. That's why standing inside a factory — without touching the roof — you feel like something's on fire above your head. The heat is radiating down, not conducting.

The second is thermal bridging. Steel's thermal conductivity is roughly 300 to 400 times that of wood (per the ASHRAE Handbook of Fundamentals). That means even if you stuff fiberglass batts between the purlins, heat will ride along the steel purlins like it's on a highway straight into the building. The insulation wraps the "cells" but not the "skeleton."

The third is condensation. This may seem unrelated to summer cooling, but if you're thinking year-round, warm humid indoor air meeting the cold underside of a steel panel in winter forms condensation — leading to rust, mold, and dripping. A good insulation solution must address both heat and moisture simultaneously.

How Aluminum Foil Woven Fabric Works: Reflecting, Not Absorbing

The traditional insulation approach is "block the heat" — pile on thicker and thicker bulk insulation. But when facing radiant heat, the effective strategy isn't blocking — it's reflecting the heat back where it came from.

That's the core principle of aluminum foil woven fabric composite. The aluminum foil surface achieves reflectivity of 96-97%, with emissivity as low as 0.03-0.05. What does that mean in practice? When the long-wave infrared heat radiating downward from the steel panel's underside meets the aluminum foil surface, roughly 97% of it bounces right back. Less than 3% gets absorbed and transmitted downward. The heat isn't intercepted — it's rejected.

But this reflective surface has one critical prerequisite: it must face an air space. Foil pressed tight against a solid surface does nothing — radiant heat exchange requires an air gap to function. In a typical steel structure factory installation, the aluminum foil woven fabric is laid beneath the purlins, between the roof sheeting and the interior space, naturally creating an air gap. The U.S. Department of Energy (DOE) states that radiant barriers require at least a 1-inch (approximately 25mm) still-air gap to function properly.

ORNL (Oak Ridge National Laboratory) large-scale climate simulator testing showed that foil facing a proper air space cut attic-floor heat flow by approximately 50% under simulated summer daytime conditions. Field-test programs in the Southeast, cited by the Florida Solar Energy Center, documented 25-50% ceiling heat-flux reduction in metal-roof buildings.

Why the Substrate Must Be Woven Fabric

The reflective surface is aluminum foil — everyone knows that. But what's behind the foil makes a huge difference.

You've probably seen radiant barriers with kraft paper as the substrate. Cheap, but they're done for the moment moisture hits them. You've also seen bubble-wrap-based ones — lightweight, but insufficient tensile strength for large-area installation; they tear easily under the pulling and trampling of construction.

Woven fabric's advantage lies in solving a core contradiction: it needs enough mechanical strength to withstand installation stress and long-span laying, without being so heavy that it adds significant roof load. Aluminum foil woven fabric composites typically achieve tensile strength of 350-500 N/50mm in the machine direction and 100-330 N/50mm in the cross direction. At this strength level, a single worker unrolling the material won't tear it, walking on it won't leave permanent deformation, and spanning it across large purlin gaps won't cause it to sag under its own weight.

Meanwhile, the woven fabric substrate gives the material excellent tear and puncture resistance. Typical tear strength runs 380-450N in MD and 330-380N in CD. This matters enormously for on-site conditions — steel structure construction sites are full of sharp metal scraps, and insulation materials frequently encounter tools, bolts, or workers' boot soles.

The most common configuration is a five-layer structure: aluminum foil / PE / woven fabric / PE / aluminum foil. The PE layers serve simultaneously as hot-melt adhesive and vapor barrier, the woven fabric provides the mechanical skeleton, and the double-sided foil delivers the reflective surface. Some premium configurations add an extra PE protective coating on the woven fabric side, further enhancing moisture resistance and heat-sealability.

Real-World Temperature Reduction: Let the Numbers Talk

Theory's done — let's look at actual results.

In field tests across multiple metal-roof factory buildings in the U.S. Southeast, installing radiant barriers produced indoor temperature reductions of 10-17°C (approximately 18-30°F). The Florida Solar Energy Center's field tests documented even more compelling numbers: one building with zero roof insulation saw summer indoor temperatures fluctuating between 32-43°C (89-109°F); after radiant barrier installation, the same building's indoor temperature dropped to 27-37°C (80-99°F).

It's worth noting that the temperature reduction depends on many factors: local climate, roof orientation and pitch, whether any form of bulk insulation already exists, whether the building uses air conditioning, and whether the foil faces an effective air space. Foil without an air gap — say, pressed directly against the steel sheet — sees dramatically diminished performance. The DOE's overall figure is: in warm, sunny climates, radiant barriers can reduce cooling costs by 5-10%.

For steel structure factories — a building type characterized by large volumes and low inherent insulation — the cooling effect tends to be more pronounced than in residential buildings. The reason is straightforward: the ratio of roof area to interior volume in a steel factory is far greater than in a typical house, meaning the "input power" of radiant heat is much larger. Blocking 97% of radiant heat naturally produces more visible results.

The Economics: How Much, and When Does It Pay Back

For factory owners, an insulation solution isn't just a technical question — it's a return-on-investment question.

The material cost of aluminum foil woven fabric composite runs approximately $0.20-$0.80 per square meter (depending on specifications and foil thickness). For new construction, the total installed cost of radiant barriers runs approximately $0.75-$1.25 per square foot, including labor. For a 4,000 square-meter factory, material costs are roughly $800-$3,200, with installation bringing the total to approximately $3,000-$5,500.

On the return side: if the factory's annual cooling cost is $15,000-$25,000 (without insulation), a radiant barrier saving 5-10% of cooling costs translates to $750-$2,500 per year. Simple math puts the payback period at 1.2-7 years — but in practice, in tropical and subtropical regions, the cooling benefits extend far beyond electricity savings. They also include improved production line efficiency, reduced defect rates, and better worker attendance. These hidden benefits often outweigh pure electricity savings by a considerable margin.

Compared to traditional alternatives: polyurethane spray foam delivers unquestionably better insulation performance (much higher R-value), but at several times the cost — and PU foam doesn't address radiant heat at all, only conductive heat. The optimal solution is typically a combination: aluminum foil woven fabric radiant barrier + appropriate bulk insulation. The radiant barrier blocks 97% of radiant heat; the remaining conductive heat is handled by the insulation batts.

Installation Essentials

A few key installation points deserve emphasis.

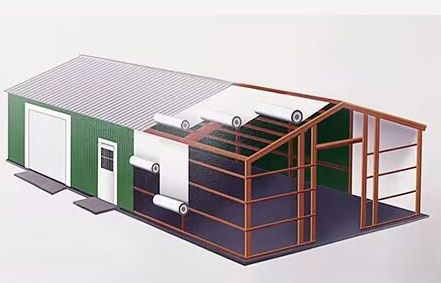

The foil face must face an air space. If the aluminum foil woven fabric gets sandwiched between two solid materials with no air gap, its radiant reflection function is essentially dead. In steel structure factories, the typical approach is to lay the material beneath the purlins (i.e., below the roof sheeting, at the bottom of the purlins), allowing an air layer between the foil face and the underside of the steel sheet.

Seam treatment can't be sloppy. Aluminum foil woven fabric comes in rolls; covering 4,000 square meters of roof inevitably involves numerous seams. All seams must be sealed with aluminum foil tape — not just for thermal continuity, but for vapor barrier integrity. Moisture seeping through unsealed seams will condense on the steel panel underside, corroding fasteners over time.

Fire rating must be code-compliant. Aluminum foil woven fabric composites used in construction should achieve at least Class A fire rating (ASTM E84 flame spread index < 25). The foil itself is non-combustible, but the PE layers and woven fabric substrate's combustion properties must ensure overall compliance.

For existing steel structure factories (retrofit), installing from the interior side is the more economical option. While not as convenient as installing during new construction, radiant barriers work effectively even when installed on the interior face of metal panels — a significant advantage over traditional bulk insulation, which typically must be fitted between framing members.

In Summary

The summer overheating problem in steel structure factories doesn't originate from hot weather — it originates from the roof failing to establish the "first line of defense" in insulation. Aluminum foil woven fabric composite addresses the most troublesome radiant heat problem with 97% radiant reflectivity; the woven fabric substrate provides sufficient mechanical strength for large-area installation and harsh construction-site environments; and the foil surface itself serves as a complete vapor barrier, simultaneously addressing condensation concerns.

It isn't a universal cure. In extreme climates, it needs to work alongside traditional bulk insulation to achieve optimal year-round thermal performance. But for the millions of steel structure factories across tropical and subtropical regions, it's a low-cost, fast-impact, easy-to-install summer cooling solution.
