Views: 0 Author: Site Editor Publish Time: 2026-07-12 Origin: Site
Metallized CPP film — abbreviated MCPP in industry datasheets and VMCPP in technical specifications — is a cast polypropylene (CPP) substrate vacuum-deposited with a thin aluminum layer on one side. The aluminum is 30 to 80 nanometers thick, providing moisture barrier, oxygen barrier, and light barrier in a single, heat-sealable, food-contact-safe material. For B2B converters and brand owners in the retort pouch and food flexible packaging industry, MCPP is the standard inner sealant layer in high-barrier retort structures and the standard outer layer in non-retort high-barrier pouches.
The key advantage of MCPP over other metallized films (MPET, MPE, MOPP) is its heat-sealability: MCPP can be sealed against itself or against other sealable films at 130 to 160 degrees Celsius, producing a strong, hermetic seal suitable for retort sterilization, hot-fill, and aggressive-product packaging. The CPP base also delivers good moisture barrier (WVTR below 1 g/m²/day) on its own, and the aluminum layer enhances this by 10 to 50x.
At Hangzhou VWIN Technology, MCPP is produced in widths up to 1,800 mm with controlled optical density and food contact compliance. The company's Premium Food-Grade Extra Wide Extra Long Aluminum Foil Master Roll for Bakery Chain & Catering Wholesale shares the same quality system and demonstrates VWIN's capability in food-grade metallized materials. The Pre-cut Food-safe Embossed Square Shisha Foil for Professional Hookah and Breathable Round Hookah Aluminum Foil Sheet in Blue Box demonstrate VWIN's broader portfolio in food-safe metallized packaging.
The base substrate is a cast polypropylene film, produced by extruding PP resin through a flat die onto a chilled roll. CPP differs from BOPP (biaxially oriented polypropylene) in that it is not stretched after extrusion, which gives CPP better heat-sealability, higher elongation, and lower modulus. The trade-off is lower stiffness and lower tensile strength compared to BOPP.
CPP grades for MCPP include:
• Standard CPP — general purpose, used in snack and dry food packaging
• Retort CPP — modified for 121 degree Celsius retort sterilization, used in ready meals
• High-barrier CPP — with EVOH or PVOH tie layers for enhanced barrier, used in oxygen-sensitive products
The most common gauges for MCPP are 25, 30, 40, 50, 60, 70, and 80 microns, with 30 and 40 micron being the workhorse for snack and dry food applications and 60 to 80 micron for retort applications.
The aluminum layer is applied by the same PVD process used for MPET, MPE, and MOPP, but with adjustments to the deposition rate and web tension to accommodate the CPP substrate's higher elongation and lower modulus. The metallization chamber is operated at 10 to the negative 3 to 10 to the negative 4 Pa, with deposition rates tuned to deliver optical density 2.0 to 2.5 for general applications and 2.5 to 3.0 for high-barrier applications.
The CPP substrate is more sensitive to heat than PET but less sensitive than PE, allowing the metallization process to run at slightly higher deposition rates than MPE without substrate distortion. The metallized film is post-treated with corona treatment (42 dynes per cm minimum) to improve ink and adhesive wettability.
A typical 30 micron MCPP consists of the CPP base (29.5 to 29.8 micron) and the aluminum layer (30 to 80 nanometers), with the balance made up of any post-treatment coating. The yield is 33 to 35 m²/kg for 30 micron and 20 to 22 m²/kg for 50 micron. Yield is a key cost metric for converters and should be specified and validated against incoming roll weights.
MCPP delivers heat-seal strength of 1.5 to 4.0 kN/m at sealing temperatures of 130 to 160 degrees Celsius, with seal initiation temperature (SIT) of 105 to 125 degrees Celsius depending on the specific CPP grade. The seal strength is consistent across a wide sealing window (typically 20 to 30 degrees Celsius) and is not affected by the aluminum layer on the opposite side of the film.
For retort applications, the seal must survive 121 degree Celsius sterilization for 30 to 60 minutes without peeling or delamination. Retort-grade MCPP is formulated with higher ethylene content or with a separate ethylene-propylene copolymer layer to maintain seal integrity through the retort cycle.
The aluminum layer on MCPP delivers OTR below 1 cc/m²/day at 23 degrees Celsius and 50 percent RH and WVTR below 0.5 g/m²/day at 38 degrees Celsius and 90 percent RH. These numbers place MCPP in the "high barrier" category required for products sensitive to oxygen and moisture: coffee, nuts, dried fruit, ready meals, and pharmaceutical products.
For retort applications, the OTR and WVTR of MCPP are typically stable through the retort cycle, with less than 20 percent degradation from pre-retort values. The aluminum layer is the primary barrier and is not affected by the retort temperatures when the substrate CPP is properly formulated.
The metallized surface of MCPP has a silvery, reflective appearance with optical density 2.0 to 2.5 for standard grades and 2.5 to 3.0 for high-barrier grades. The optical density is the standard spec for light barrier, and most specifications call for OD above 2.3 for general food packaging and above 2.8 for light-sensitive pharmaceutical and dairy products.
CPP-based MCPP delivers tensile strength of 30 to 50 MPa in the machine direction and 25 to 40 MPa in the transverse direction, with elongation at break of 400 to 700 percent. The mechanical properties are sufficient for most converting and packaging applications, including form-fill-seal (FFS) lines with up to 12 percent stretch.
The most common MCPP-based lamination is PET/MCPP (12/30 to 12/60 micron), used for snack, confectionery, and dry food packaging. The PET provides printability, stiffness, and dimensional stability, while the MCPP provides heat-sealability and barrier. This structure delivers 6 to 12 months of shelf life for most snack products at 25 degrees Celsius storage.
For higher-barrier applications, the structure becomes PET/MPET/MCPP (12/12/30 to 12/12/60 micron), adding a layer of MPET for enhanced oxygen and moisture barrier. This structure delivers 12 to 24 months of shelf life and is used for coffee, nuts, and pharmaceutical products.
Retort pouches use higher-temperature-resistant structures, typically PET/MPET/CPP or PET/Aluminum Foil/CPP. The PET/foil/CPP structure (12/7/60 to 12/9/80 micron) is the gold standard for retort, surviving 121 degree Celsius sterilization for 30 to 60 minutes with no delamination or barrier loss. The PET/MPET/CPP structure (12/12/60 to 12/12/80 micron) is a more cost-effective alternative for less aggressive retort applications, surviving 121 degrees Celsius for 15 to 30 minutes.
The CPP layer in retort pouches is typically 60 to 80 micron to provide the mechanical strength needed for the retort cycle and the handling of the finished pouch. Retort-grade CPP is specially formulated with high ethylene content or with a separate ethylene-propylene copolymer layer to maintain seal integrity.
MCPP is used as the inner sealant layer in stand-up pouches and spouted pouches, where the heat-sealability and food contact compliance of CPP are essential. The outer layer is typically PET, BOPP, or nylon for printability and stiffness, with the MCPP providing the seal. Common structures include PET/MPET/MCPP (12/12/60) for coffee and snack pouches and PET/Nylon/MCPP (12/15/60) for liquid pouches.
MCPP for food contact applications must comply with EU Regulation 1935/2004 (European Framework Regulation for food contact materials) and US FDA 21 CFR (sections 174 to 177). Compliance documentation includes a Declaration of Compliance (DoC), migration test reports for the specific application, and certification that the aluminum layer and any post-treatment coatings meet the relevant migration limits.
For the EU, the specific migration limit (SML) for aluminum is 5 mg/kg food, and the overall migration limit (OML) is 10 mg/dm². For the US, the FDA regulates the components of the food contact material under 21 CFR 174-177, with specific limits for adhesives, coatings, and polymer additives.
For products sold in China, MCPP must comply with GB 4806.7 (National Food Safety Standard — Food Contact Plastic Materials and Products). The standard specifies migration limits for plastic food contact materials, including the overall migration limit (10 mg/dm²) and specific migration limits for individual additives.
For new applications or new lamination structures, migration testing is typically performed by an independent lab using food simulants (water, 3 percent acetic acid, 10 percent ethanol, olive oil) at the intended use conditions. The test report is provided to the customer as part of the supplier qualification package.
The most significant sustainability development in MCPP-based packaging is the shift toward mono-material PP structures designed for mechanical recycling. Traditional PET/AL/CPP laminates cannot be recycled through standard PP streams because the PET and aluminum contaminate the recyclate. New mono-material designs — such as BOPP/MCPP/CPP or BOPP/CPP — allow the entire structure to enter the same PP recycling stream, with the metallized CPP layer recovered as a small fraction of the recyclate.
Major FMCG brands including Nestle, Unilever, and Mondelez have committed to 100 percent recyclable or reusable packaging by 2025 to 2030, and MCPP plays a central role in delivering high-barrier recyclable PP structures. The barrier loss in moving from foil to MCPP in mono-material structures is partially offset by the recyclability premium in markets with EPR (Extended Producer Responsibility) regulations.
A 30 micron MCPP has a carbon footprint of approximately 2.5 to 3.5 kg CO2e per kg of film, similar to MPET. The carbon advantage of MCPP-based structures over foil-based structures is 30 to 45 percent, primarily because of the energy savings from replacing 7 to 9 micron aluminum foil with 30 to 80 nanometer of vacuum-deposited aluminum. For converters with Scope 3 emissions reporting, the switch to MCPP is one of the highest-leverage decarbonization moves available in flexible packaging.
Post-consumer recycled (PCR) PP can be used as the base substrate for new MCPP, though the optical clarity and barrier performance of PCR-derived MCPP are typically 10 to 15 percent below virgin-grade material. For food-contact applications, PCR content is generally limited to 30 to 50 percent under EU and FDA guidance.
Global demand for MCPP is forecast to grow at 6.0 to 7.5 percent CAGR through 2028, reaching approximately 400,000 metric tons annually. The largest growth segments are retort pouches for ready meals, stand-up pouches for pet food, and spouted pouches for baby food and beverages. Capacity expansions in China, India, and Southeast Asia are outpacing demand growth, leading to stable prices and shorter lead times for B2B buyers.
Extended Producer Responsibility (EPR) regulations in the EU, Canada, and several US states are creating pricing signals that favor recyclable MCPP-based PP structures over non-recyclable foil laminates. India's Plastic Waste Management Rules and China's dual-carbon policy are also pushing brand owners toward MCPP-based designs. The EU's PPWR will require all packaging to be recyclable by 2030, with significant penalties for non-compliance.
The most visible technical trend is the development of high-temperature-resistant retort CPP that survives 130 to 135 degree Celsius sterilization for 60+ minutes, enabling the replacement of cans and glass jars with retort pouches for a wider range of products. A second trend is the use of high-barrier clear coatings (SiOx, AlOx) on MCPP to push OTR below 0.1 cc/m²/day, matching foil performance for pharmaceutical and high-end food applications.
A European ready meal brand switched from aluminum cans to retort pouches using a PET/MPET/MCPP (12/12/80) structure, reducing packaging weight by 75 percent and packaging cost by 30 percent. The 24 month shelf life target was maintained, and consumer convenience improved with the microwaveable pouch format.
A snack manufacturer in Southeast Asia qualified an MCPP-based lamination for export to the EU and US, requiring EU 1935/2004 and FDA 21 CFR compliance. Hangzhou VWIN's MCPP, with documented migration test reports and a Declaration of Compliance, was selected and qualified in 10 weeks. The manufacturer has since consolidated all of its Asian MCPP sourcing to Hangzhou VWIN.
A premium pet food brand developed a stand-up pouch using a PET/MPET/MCPP (12/12/60) structure, replacing a multi-layer foil-based structure and reducing packaging cost by 22 percent. The 18 month shelf life target was maintained, and the brand qualified for the How2Recycle store-drop recycling program in North America.
Symptom: Heat seals fail below the specified strength or peel during the retort cycle. Cause: Insufficient seal temperature, insufficient seal pressure, or contaminated seal surface. Fix: Verify seal temperature with a calibrated thermometer; increase seal pressure by 10 to 20 percent; check seal surface for contamination.
Symptom: OTR or WVTR increases significantly after retort sterilization. Cause: Pinholes in the aluminum layer from process upsets, or lamination adhesive failure during retort. Fix: Request pinhole count data from supplier; switch to retort-grade adhesive; reduce lamination tension.
Symptom: The MCPP roll shows a telescoping (conical) profile after slitting. Cause: Inconsistent winding tension, or excessive residual stress from the metallization process. Fix: Reduce rewind tension by 10 to 15 percent; condition the roll at 25 degrees Celsius for 24 hours before slitting.
Verify the supplier's annual production capacity (in million square meters) and current lead time for your gauge and width. A reliable MCPP supplier should have 15+ million square meters of annual capacity and lead times under 14 days for stock items.
Request the following documents before placing a trial order: ISO 9001 certificate, food contact compliance documents (EU/FDA/GB), optical density test reports, OTR/WVTR test reports, and a sample COA from a recent production batch.
For non-standard widths, optical densities, retort grades, or pre-laminated MCPP structures, verify the supplier's R&D capability and minimum order quantity. A flexible supplier will accept custom orders at 5,000 to 10,000 square meters MOQ.
Hangzhou VWIN produces MCPP in widths from 200 mm to 1,800 mm, with standard gauges of 25, 30, 40, 50, 60, 70, and 80 microns. Optical density is calibrated to customer specification across the 2.0 to 3.0 range. The company's Premium Food-Grade Extra Wide Extra Long Aluminum Foil Master Roll for Bakery Chain & Catering Wholesale demonstrates the same metallization technology used for MCPP and serves as a benchmark for food-contact quality.
MCPP uses a cast polypropylene base, which is heat-sealable, more flexible, and lower-cost. MPET uses a biaxially oriented polyester base, which is stiffer, more heat-resistant, and used as a non-sealant barrier layer. MCPP is preferred as the inner sealant layer in retort and snack pouches, while MPET is preferred as the middle barrier layer in high-barrier structures.
Yes, retort-grade MCPP is specifically formulated to survive 121 degree Celsius sterilization for 30 to 60 minutes without delamination or barrier loss. Standard MCPP can also be used in less aggressive retort applications (121 degrees Celsius for 15 to 30 minutes).
The heat-seal initiation temperature (SIT) for MCPP is typically 105 to 125 degrees Celsius, with optimal sealing at 130 to 160 degrees Celsius. Retort-grade MCPP has a higher SIT to maintain seal integrity through the retort cycle.
Yes, MCPP from reputable suppliers is produced under food contact compliance with EU 1935/2004, FDA 21 CFR, and China GB 4806.7. Always request a Declaration of Compliance and migration test reports from the supplier.
A 30 micron MCPP delivers OTR below 1 cc/m²/day at 23 degrees Celsius and 50 percent RH. High-barrier grades with optical density above 2.8 deliver OTR below 0.5 cc/m²/day.
Custom MCPP (non-standard width, optical density, or pre-laminated structure) typically ships within 21 to 30 days from purchase order. Stock items usually ship within 7 to 14 days.
MCPP is theoretically recyclable as a polypropylene film, but the thin aluminum layer complicates the recycling process. Mono-material PP structures (BOPP/MCPP/CPP) are recyclable through standard PP streams. Multi-layer laminates with mixed polymer types are not recyclable through standard streams.
MCPP is heat-sealable, lower-cost, and recyclable, but delivers 85 to 90 percent of foil's barrier performance. Aluminum foil is not heat-sealable, requires adhesive lamination, and is not recyclable, but delivers the highest barrier performance. For most retort applications with 12 to 24 month shelf life, MCPP-based structures are sufficient.
For B2B buyers interested in MCPP and related food-grade metallized materials from Hangzhou VWIN, the following products share the same quality system:

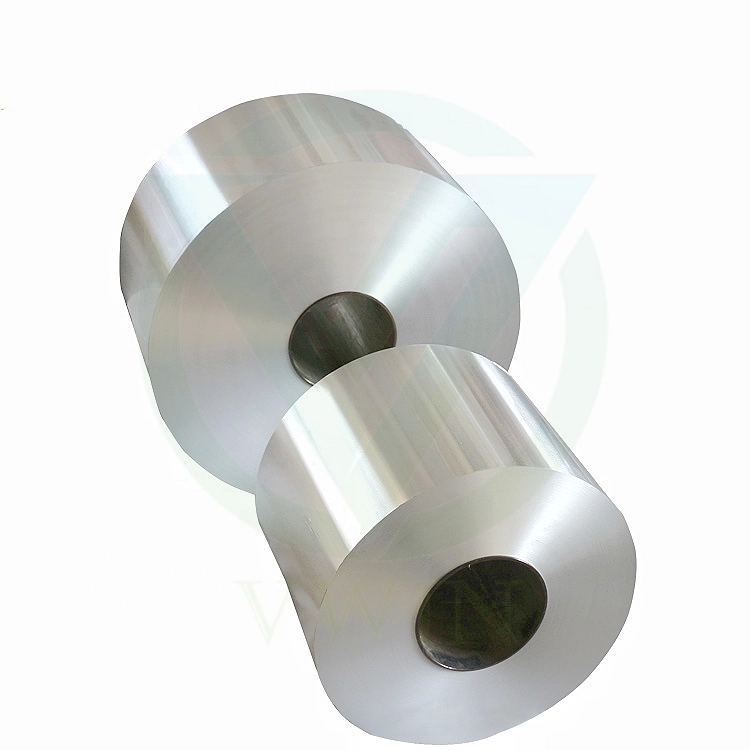

• Premium Food-Grade Extra Wide Extra Long Aluminum Foil Master Roll for Bakery Chain & Catering Wholesale — food-grade foil master roll produced in the same facility, ideal for bakery chain and catering applications
• Pre-cut Food-safe Embossed Square Shisha Foil for Professional Hookah — pre-cut foil sheets with food-safe embossing, suitable for hookah and food service
• Breathable Round Hookah Aluminum Foil Sheet in Blue Box — breathable foil sheets for hookah applications with retail-ready packaging
Metallized CPP film is the standard inner sealant and barrier layer in modern retort pouches and high-barrier food packaging, delivering heat-sealability, food contact compliance, and barrier performance in a single material. For B2B converters, the key to sourcing high-quality MCPP is verifying food contact compliance, optical density, OTR/WVTR, and customization capability, and selecting a supplier with the production capacity and quality system to support consistent supply.
Hangzhou VWIN Technology produces MCPP in widths up to 1,800 mm with annual capacity exceeding 30 million meters, supported by ISO 9001 quality management and full food-contact compliance documentation. The company supports both stock and custom MCPP orders with 7 to 30 day lead times. Request a sample COA and trial order to qualify MCPP for your specific application.
The global retort pouch market is forecast to grow at 6 to 8 percent CAGR through 2028, driven by consumer demand for shelf-stable ready meals, pet food, and seafood. The shift from cans to retort pouches continues to accelerate because pouches offer 60 to 80 percent energy savings in sterilization, 70 percent weight reduction, and 90 percent lower storage footprint. Mono-material PP retort structures (MOPP/MCPP and MOPP/CPP) are emerging as the next generation of recyclable retort packaging, replacing traditional PET/MPET/PE and PET/AL/CPP laminates. B2B converters qualifying MCPP for new retort applications should request retort-test samples, conduct 30 to 60 day shelf life trials, and verify heat seal integrity at 130 to 160 degrees Celsius. Hangzhou VWIN's Pre-cut Food-safe Embossed Square Shisha Foil for Professional Hookah shares the same food-grade quality system and is a complementary product line for buyers in adjacent packaging segments.
