Low-Temperature Toughness of Foil Woven Fabric in LNG Cryogenic Pipe Cold Insulation Jacketing

Ras Laffan Industrial City, Qatar. June. Surface temperatures pushing past 50°C with 80 percent humidity. Inside the pipes, liquefied natural gas flows at -162°C. The thermal delta between inside and outside exceeds 210 degrees.

During a routine inspection, an operations engineer at an LNG receiving terminal notices frost forming on the outer surface of a cold insulation pipe. The problem is not inside the pipe — it is the outermost jacketing layer that has cracked. Hot, moisture-laden air has found its way through the fissure, hit the -162°C insulation surface, and instantly frozen into ice. Ice expands by 9 percent in volume, acting like a hydraulic jack that splits the PIR foam apart from within. The industry has a name for it: ice jacking. Three months later, the entire insulation section is compromised. Boil-off gas rates spike. Maintenance costs spiral.

The post-incident analysis traced the root cause back to one thing: the jacketing material had become brittle at cryogenic temperatures and cracked. That single failure undid everything the insulation system was designed to do.

The Jacketing: The Most Overlooked — and Most Critical — Layer in the Cold Insulation Chain

When most people discuss LNG pipe insulation, the conversation centers on the insulation material itself — PIR foam, cellular glass, aerogel. Those are important. But there is a saying in the insulation trade: in a vapor barrier chain, the weakest link kills the whole system.

The reason is simple. In LNG cold insulation, the real enemy is not heat. It is moisture.

When a pipe surface sits at -162°C while the external environment is hot, humid, and coastal, the resulting vapor drive is extraordinarily powerful. It acts like an invisible vacuum pump, continuously pulling water molecules into the insulation matrix. The moment the jacketing develops even a hairline crack or an unsealed lap joint, moisture has a clear path inward. Once it reaches the cryogenic zone, it freezes solid. The ice dramatically increases the thermal conductivity of the insulation while simultaneously generating expansion forces that tear the insulation apart internally.

Johns Manville's technical documentation states explicitly that the predominant cause of reduced insulation performance in cryogenic systems is a breach in the vapor barrier, allowing moisture infiltration. According to a joint analysis by Seal for Life and Aspen Aerogels, every contraction joint in a traditional rigid insulation system represents a potential failure point.

This raises a critical question: can the jacketing material itself survive at -162°C without becoming brittle?

Why Conventional Jacketing Materials Fail in Deep Cryogenic Conditions

Take aluminum metal jacketing first. The metal itself does not suffer from low-temperature embrittlement, but it is rigid. When an LNG pipe cools from ambient to -162°C, the steel contracts significantly. A rigid metal sleeve cannot follow that contraction — stress concentrates at lap joints and points, and after repeated thermal cycles, fatigue cracks appear. Scratches and dents from installation only accelerate the process.

Now consider FSK (Foil-Scrim-Kraft), the most widely used vapor barrier facing in HVAC. It performs admirably on standard air-conditioning ductwork. But FSK's rated lower temperature limit is typically -40°C per ASTM D1790 testing — nowhere near the -162°C that LNG service demands. The kraft paper layer loses all flexibility at extreme cold. The entire composite becomes as brittle as glass.

PVC jacketing fares no better. Plasticizers migrate at low temperatures. The material hardens, shrinks, and debonds at seams.

None of these materials are inherently bad. They are simply being asked to perform far beyond their design envelope.

What Low-Temperature Toughness Actually Means — It Is Not Just "Not Cracking"

When we talk about a jacketing material having genuine low-temperature toughness in deep cryogenic service, we are describing something more nuanced than simple fracture resistance. It encompasses at least three distinct properties.

First, the material must retain flexibility at extreme low temperatures without undergoing brittle fracture. When the pipe contracts during thermal cycling, the jacketing must deform with it rather than resist until it breaks.

Second, the interlayer bond strength must hold at cryogenic temperatures. Many composite materials perform well at ambient conditions but suffer delamination at extremes, as the adhesive between layers fails and the vapor barrier collapses.

Third, the material must resist fatigue under repeated thermal cycling. LNG pipes do not maintain a constant temperature. Every loading and unloading cycle, every maintenance shutdown, every restart delivers a violent thermal shock from ambient down to -162°C. The jacketing must survive hundreds or thousands of these cycles without measurable degradation.

Foil Woven Fabric: Why It Performs in LNG Cryogenic Jacketing

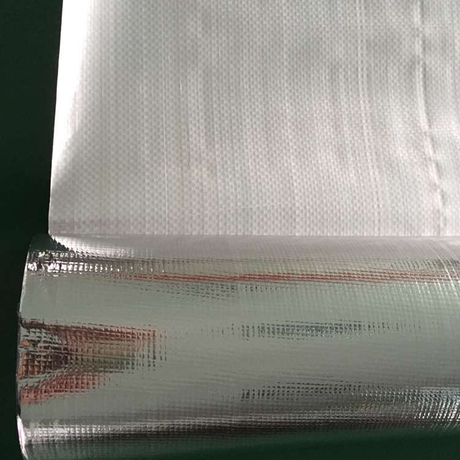

Aluminum foil woven fabric is a composite structural material: high-purity aluminum foil (≥99.5 percent purity) is thermally laminated to a PP or HDPE woven fabric substrate. The foil provides reflective thermal insulation and an absolute moisture barrier. The woven fabric provides tensile strength and tear resistance.

The key lies in the woven substrate.

Unlike pure aluminum foil or rigid composites like FSK, the biaxial woven structure gives the material a distinctive mechanical behavior. It does not resist low-temperature stress through rigidity — it dissipates stress through movement. When temperatures plunge toward -162°C, the woven fibers retain a degree of flexibility and elongation capacity. The material can contract and bend with the pipe rather than fighting the contraction until it fractures.

Test data shows that aluminum foil composites with HDPE woven fabric substrates achieve tensile strength exceeding 600 N per 5 cm. At -30°C, the material maintains flexibility and strength without brittle cracking. For even more extreme cryogenic duty, adjusting the polymer formulation of the woven substrate — such as using low-temperature-grade PP copolymer — can push the brittleness threshold further down to -50°C and beyond.

The aluminum foil layer itself is completely unaffected across this temperature range. Metallic aluminum actually sees improved mechanical properties at cryogenic temperatures. What determines the composite's overall low-temperature toughness is whether the woven substrate maintains structural integrity under extreme cold.

In actual LNG projects, foil woven fabric is typically applied as jacketing by wrapping it around the outermost surface of PIR or cellular glass insulation, with joints heat-sealed using aluminum foil tape to form a continuous, flexible, moisture-proof shell. Even when the pipe contracts thermally, this flexible envelope follows the deformation without rupturing, maintaining an intact vapor barrier.

This is not theoretical. Across LNG facilities in Qatar, Australia, and the US Gulf Coast, engineers are re-evaluating their jacketing material selection logic. Traditional aluminum and FSK still dominate, but a growing number of high-specification projects are specifying foil woven fabric as the preferred alternative — particularly on pipe sections where thermal cycling is frequent, vibration is significant, or space constraints make rigid jacketing prone to fatigue failure.

The Real Cost of Jacketing Failure

On an LNG receiving terminal's cold insulation piping, the insulation material itself may account for only 30 to 40 percent of total installed system cost. The remainder covers installation labor, vapor barrier accessories, jacketing, and ongoing maintenance.

When jacketing begins failing after three to five years of service, you are not looking at a simple jacketing replacement. You need to strip the entire outer layer, inspect whether the insulation has been degraded by ice infiltration, repair or replace damaged insulation material, and reinstall the vapor barrier and jacketing. Without shutting down operations, per-meter repair costs can run three to five times the original installation expense.

That is before accounting for the product loss from increased BOG. On an 8 MTPA LNG liquefaction train, every 0.1 percent increase in boil-off gas rate means an additional 8,000 tonnes of LNG evaporated annually — worth millions of dollars at current market prices.

Choosing the right jacketing material is not about saving money. It is about avoiding catastrophic loss.

Three Questions to Ask Before You Spec

If your project involves LNG or similar deep cryogenic pipe insulation, here is what you should confirm with your jacketing supplier.

First: does the material's minimum service temperature cover your operating conditions with adequate safety margin? For -162°C LNG service, the jacketing should remain flexible well below -50°C — because while the jacketing surface temperature depends on insulation efficiency, it will always be far colder than ambient.

Second: do you have fatigue resistance data under cryogenic thermal cycling conditions? Not tensile strength at room temperature — actual performance retention after simulated temperature cycling.

Third: how reliable is the seam sealing solution at low temperature? Even the best jacketing is worthless if the joints debond in the cold.

We have a mature product line and project experience in this space. If you are evaluating jacketing materials for LNG cryogenic piping, our technical team is ready to provide samples and test data.
