Laboratory Capabilities of Aluminum-Plastic Composite Film Suppliers: Barrier Testing and Heat Seal Testing Equipment

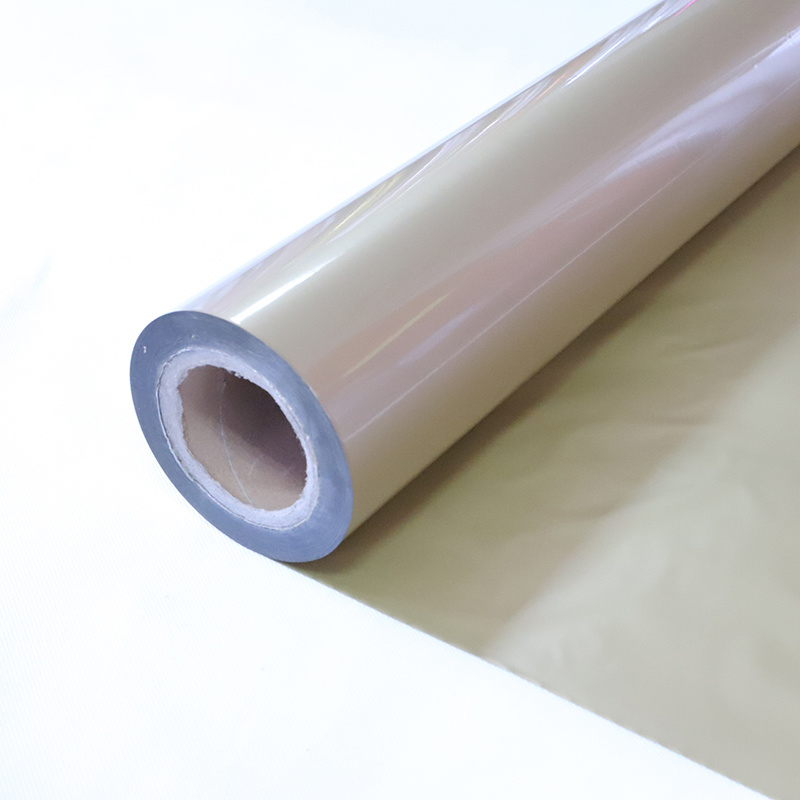

Last fall, a procurement manager at a North American generic drug company received a shipment of aluminum-plastic composite film from an Asian supplier. The material looked fine on the outside, and the spec sheet proudly claimed a WVTR below 0.05 g/m²·24h — respectable numbers. But once the film hit the packaging line and sealed blister packs landed in the accelerated stability chamber, moisture-sensitive tablets started losing potency within two weeks. Root cause investigation revealed the supplier's lab equipment simply couldn't resolve transmission rates that low. The real value was likely three to four times the stated figure. A $60,000 shipment was rejected in full.

Stories like this aren't unusual in the flexible packaging world. The performance data of aluminum-plastic composite film is, at the end of the day, something that a laboratory measures. If the equipment lacks precision, the test method is wrong, or environmental conditions aren't controlled, the numbers coming out are worthless. This article walks through what a competent aluminum-plastic composite film supplier should have in their lab — which instruments, which tests, and what those numbers actually mean for your purchasing decisions.

Why Barrier Testing Is the Center of Gravity

The entire reason aluminum-plastic composite film exists boils down to two characters in Chinese: to block. Block water vapor, block oxygen, block light, and protect whatever is inside from the outside world. That makes barrier performance the single most important quality metric for these materials, and consequently the top priority in any supplier's testing laboratory.

Barrier testing breaks into two major categories: Water Vapor Transmission Rate (WVTR) testing and Oxygen Transmission Rate (OTR) testing.

WVTR Testing: Methods, Equipment, and Standards

There are three mainstream methods for measuring water vapor transmission rate in the industry today.

The first is the gravimetric method, governed by ASTM E96 and ISO 2528. The principle is straightforward — place a desiccant or distilled water on one side of a cup, clamp the specimen over the opening, and periodically weigh it to track mass change. The equipment is cheap and the operation is simple, but the limitations are obvious: the detection limit bottoms out around 0.5 g/(m²·day), and a single test can take several days. For aluminum foil composite film — a high-barrier material with WVTR typically in the 0.01 to 0.5 range — the gravimetric method simply can't deliver reliable numbers. It's better suited to ordinary plastic films or nonwovens with moderate barrier levels.

The second is the infrared sensor method, governed by ASTM F1249. This is currently the mainstream approach for testing high-barrier materials. Different humidity environments are maintained on either side of the specimen; water molecules that permeate through are carried by a dry nitrogen stream to an infrared sensor, whose signal is proportional to water vapor concentration. Representative equipment like the MOCON AQUATRAN 3/34 series can reach a detection limit of 0.005 g/(m²·day) on its L-model, fully covering the testing needs of aluminum-plastic composite films. Test times are dramatically shorter, automation is high, and results are NIST-traceable.

The third is the electrolytic sensor method, governed by ASTM F1927. The principle is similar but uses a different sensor type, and it sees use in certain specialized applications.

For an aluminum-plastic composite film supplier, an infrared-sensor WVTR tester is practically mandatory. Without one, you cannot reliably verify your product's moisture protection performance.

OTR Testing: Why Coulometric Is the Gold Standard

Oxygen transmission rate testing matters equally for aluminum-plastic composite film, especially in food and pharmaceutical packaging — oxygen is the number-one enemy driving oxidative degradation.

The gold standard for OTR testing is ASTM D3985, the coulometric sensor method. The specimen is clamped between two test chambers; one side is exposed to pure oxygen while the other side uses an inert carrier gas (typically high-purity nitrogen) to transport permeated oxygen molecules to a coulometric sensor. The sensor quantifies oxygen content through an electrochemical reaction with extremely high precision, reaching detection limits around 0.001 cc/(m²·day). Representative equipment includes the MOCON OX-TRAN series and the Labthink C406H (OTR range 0.02–200 cc/(m²·day)).

The coulometric method's core advantages: the sensor doesn't require periodic calibration, results are NIST-traceable, and measurement repeatability for high-barrier materials far surpasses other methods. By contrast, the non-coulometric sensors used under ASTM F2622 — such as galvanic electrochemical sensors — cost less but need regular calibration and have poorer linearity, making them better suited to medium-to-low barrier materials.

For composite films containing an aluminum foil layer, the pure foil lamina (at thicknesses above 9μm) provides near-zero oxygen barrier — OTR is essentially immeasurable. What actually needs precise measurement is the contribution of individual layers in the aluminum-plastic composite structure, and the impact of pinholes and defects on overall barrier performance. That's why the precision and sensitivity of OTR equipment matter enormously.

Heat Seal Testing: From Parameter Optimization to Strength Validation

Barrier performance is an intrinsic material property, but if you can't seal it properly, all that barrier performance goes to waste. Heat seal testing addresses exactly this: find the optimal sealing parameters and verify that seal strength meets requirements.

Heat seal testing actually involves two layers of work.

The first layer is heat seal parameter optimization. A heat sealer precisely controls three key variables: temperature, pressure, and dwell time. The operator runs a gradient series — say, from 130°C to 200°C in 10°C increments, sealing a set of specimens at each point — then tests the seal strength of each group and plots a seal curve. The curve tells you the minimum effective sealing temperature (initiation temperature), where the optimal sealing window sits, and whether excessive temperature causes material degradation and strength drop-off.

This test corresponds to ASTM F2029. For aluminum-plastic composite film, the heat-seal layer is typically PE or modified PE, and the sealing temperature window is relatively narrow — too low and it won't seal; too high and you'll wrinkle or even puncture the aluminum foil layer. So parameter optimization isn't optional; it's mandatory.

The second layer is seal strength verification, which is where ASTM F88 comes in. The procedure is straightforward: cut 25 mm-wide seal strips, pull them apart on a universal tensile tester at 200–300 mm/min, record the force-displacement curve, and calculate maximum seal strength and average seal strength. ASTM F88 defines three clamping configurations — Technique A (unsupported), Technique B (hand-supported at 90°), and Technique C (fixture-supported at 180°) — chosen flexibly based on the packaging structure.

What's interesting is that seal strength testing isn't just about "how strong is the seal." The failure mode matters just as much. If the break occurs at the seal interface (a clean separation), that signals a sealing quality problem. If the break occurs in the substrate itself (material tearing), it actually means the seal is stronger than the material. These two failure modes lead to completely different quality assessments.

Full Laboratory Competence: It's More Than Owning Equipment

Owning equipment is one thing; making that equipment consistently produce reliable data is another. A qualified aluminum-plastic composite film supplier's laboratory should demonstrate at least the following comprehensive capabilities.

Environmental control. WVTR and OTR tests are exquisitely sensitive to temperature and humidity. For every 10°C increase in temperature, the transmission rate approximately doubles. Hydrophilic materials like EVOH see their barrier performance collapse in humid conditions. So the lab must have constant temperature and humidity systems, with test conditions strictly maintained per standards — not "it's cool today so let's skip the AC for a while."

Calibration and traceability. Equipment sensors need periodic calibration, and reference films must be traceable to NIST or an equivalent national metrology institute. Test data without calibration records is virtually the same as having no data at all.

Data management. Modern lab equipment basically supports digital data export, but the real question is whether your data management system can deliver traceability and auditability. For pharmaceutical packaging customers, this may mean meeting FDA 21 CFR Part 11 electronic signature and data integrity requirements.

Personnel competence. The best equipment is useless if nobody knows how to run it. Operator training, assessment, and qualification are integral parts of the lab quality management system — typically built on ISO 17025.

Practical Advice for Buyers

As a buyer, how do you use this information to protect your interests? A few suggestions.

First, add laboratory capability audits to your supplier review checklist. Don't just look at quotes and sample appearance — request the supplier's equipment list, their most recent calibration certificates, and inter-laboratory comparison results from a third party. If they hesitate or can't produce these, that's a red flag.

Second, send samples for independent verification. Don't rely entirely on the supplier's QC reports. Take a batch and send it to your own lab or an independent third-party lab (such as SGS or Intertek) for WVTR and OTR re-testing. If the numbers don't match, it's time to sit down and talk.

Third, specify test methods and acceptance criteria explicitly in your purchase contracts. Don't just write "WVTR ≤ 0.05" — write "tested per ASTM F1249 at 38°C / 90% RH." Different test conditions can produce results that differ by several multiples. Vague specifications are the same as no specifications.

Fourth, pay attention to heat seal parameter reproducibility. Ask the supplier for a complete seal curve, not just a "seal strength passed" conclusion. With the curve in hand, you can reproduce the same sealing conditions on your end, and when quality issues arise, quickly determine whether the material changed or the process drifted.

Final Thoughts

The quality of aluminum-plastic composite film isn't really "made" — it's measured. Without a reliable laboratory, production is flying blind. As a supplier, investing in lab capability is investing in customer trust and order stability. As a buyer, learning to read your supplier's lab data is more valuable than learning how to haggle over price.
