How Do Aluminum-plastic Composite Films Ensure Barrier Performance? Structural Analysis: The Evolution of Barrier Properties From Single-layer To Seven-layer Composites

The Question That Stumps Every Supplier

Last year, a construction materials client brought us a piece of insulation film and asked, "Your specs look about the same as everyone else's, so why should I pay more?" We didn't rush to explain. Instead, we put their film and ours side by side in a constant temperature and humidity chamber. After 72 hours, the difference was obvious — their film had blistered and delaminated. Ours was intact. He asked a very practical question: "What's actually different?"

Two words: structure.

Whether it's thermal insulation in construction or freshness preservation in packaging, barrier performance is the number one metric. And what determines barrier performance isn't how expensive the raw material is — it's how the structure is designed, how the layers stack up, and what each layer actually does.

The Problem with Single-Layer Film: It Can Do Too Little

Early packaging and building films were just one layer of plastic doing everything — single-layer PE or single-layer PET. Cheap, easy to process, fast to produce. The problem? Single-layer polyethylene has an oxygen transmission rate of 6,000–8,000 cc/m²·day, and water vapor passes through it almost freely. Put simply, it barely blocks anything.

Anyone in food knows this pain. Nuts packed in plain PE bags go rancid in two weeks. Pharmaceuticals get moisture damage after a few months. Construction side is similar — a single-layer membrane on a roof gets scorching hot in summer and lets moisture right through.

The industry figured something out: you can't solve every problem with one material alone. The path leads nowhere.

Three-Layer Structure: Where Each Layer Gets a Job

Three-layer lamination was the real turning point. Take the classic PET/AL/PE structure — the outer PET provides tensile strength and a printable surface, the middle aluminum foil delivers total barrier, and the inner PE handles heat sealing and product contact. Each layer does what it does best, and the combined performance far exceeds the sum of its parts.

How effective is this? A 7-micron aluminum foil layer drops oxygen transmission to essentially zero, cuts water vapor transmission to near zero, and blocks all light. In food packaging, this structure achieves 18–24 month shelf life. Compare that to two weeks with single-layer PE.

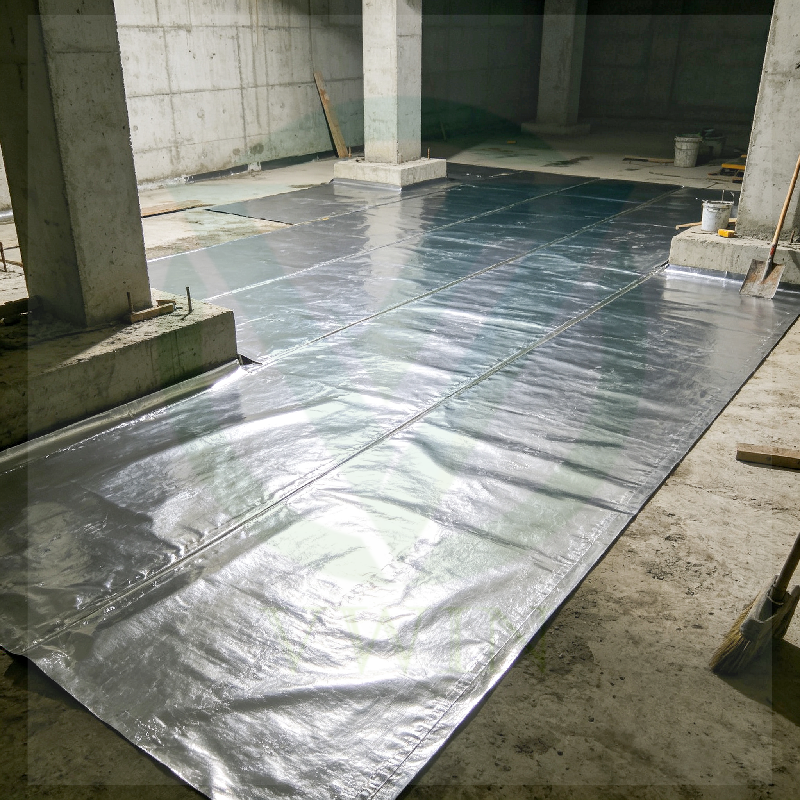

Construction works similarly — the aluminum layer reflects over 95% of thermal radiation, dropping indoor temperatures by 5–8°C. But three layers have a weakness: aluminum foil cracks under repeated bending. Once pinholes form, barrier performance collapses.

Four to Five Layers: Plugging Each Weakness

With four or five layers, the design philosophy shifts. It's no longer just "barrier + support + seal." Now functional layers start solving problems the previous structure left behind.

Adding a nylon layer is a textbook example. Nylon resists puncture and handles high temperatures. In frozen food packaging, it prevents bones and ice crystals from piercing the foil. In construction, a five-layer structure adds UV protection and reinforcement layers so the foil membrane can sit on a roof for years without degrading.

Adhesives have evolved too. Early PU adhesives that didn't fully cure would cause interlayer delamination. Newer modified epoxy systems and solvent-free adhesives have largely solved this. In a five-layer structure, the quality of those two adhesive layers directly determines the overall barrier lifespan — if the glue fails, nothing else matters.

Seven-Layer Structure: Barrier Taken to Its Extreme

Seven-layer composite film isn't a concept — it's a real, mass-produced high-end solution. A typical structure might run: outer PET → adhesive → aluminum foil → adhesive → nylon → adhesive → inner functional PE. Each layer has thickness controlled to the micron.

What can seven layers do? The foil layer provides absolute barrier. Nylon handles puncture resistance and heat tolerance. The functional PE layer gets customized for the application — high seal strength, retort resistance, oil resistance, or low-temperature flexibility. Adhesive layers lock everything together so the structure holds up under extreme temperature swings and mechanical stress without delaminating.

The numbers tell the story: seven-layer structures can achieve combined OTR below 0.01 cc/m²·day and WVTR below 0.01 g/m²·day. At this level of barrier, coffee grounds stay fresh for two years, medical devices maintain sterility for five years, and precision electronics survive tropical ocean shipping without moisture damage.

From single-layer to seven-layer, the evolution is fundamentally material engineering moving from "good enough" to "precision design." Every layer solves a specific problem — it's not about adding cost, it's about adding capability exactly where needed.

VWIN's Structural Engineering Capability

VWIN develops and manufactures multi-layer aluminum-plastic composite films spanning three to seven layers. We work backward from the customer's specific application — whether that's food packaging, construction insulation, or industrial protection — to engineer the optimal layer structure and material. More layers isn't always better; the structure that's just sufficient for the job is always the most economical.

Every structural solution ships with complete OTR and WVTR test data from actual production runs, not lab theoretical values. If your current packaging or building film isn't performing on barrier, or you want to evaluate whether upgrading to a multi-layer structure makes sense technically and economically, reach out to us.
