Foil Woven Fabric in Light Steel Villas: Full Envelope Insulation for Walls and Roofs

The Light Steel Villa That Couldn't Keep Cool

A homeowner outside Melbourne posted a long write-up online after his first year in a new light steel villa. The build was fast — 200 square metres, main structure up in under a month. But the first summer nearly broke him. Attic temps hit 65°C. The air-con ran flat-out from dawn to dusk, and the power bill tripled compared to his old place. Winter was worse. Touch the interior wall panel and it felt like stone. He figured the insulation batts were too thin. Had someone come out to inspect, and the diagnosis was more fundamental than "not enough cotton." Heat was riding the steel studs like a highway, bypassing the insulation entirely.

He wasn't alone. The cold-formed thin-walled steel that frames these homes conducts heat roughly 1,400 times faster than wood, according to Metal Builder Magazine's Summer 2026 edition. When a steel purlin runs from the exterior roof panel straight into the conditioned interior, it acts like a radiator fin running in reverse — pulling warmth out in winter and pushing it back in during summer. Pacific Northwest National Laboratory measured the consequences directly: thermal bridging can slash the effective R-value of a nominally R-19 fiberglass batt down to R-9 or lower. That is more than half the rated performance, gone. All that careful factory-installed cavity insulation, quietly neutralised by the frame holding it.

This is the backdrop against which foil woven fabric has entered the light steel villa envelope. It does not replace cavity insulation. It solves the problem that cavity insulation cannot reach — radiant heat transfer.

Radiant Heat: The Load Nobody Talked About

Heat moves three ways. Conduction travels through solids, which is what fiberglass and mineral wool slow down by trapping still air in their fibres. Convection rides on moving air, managed by ventilation and airtightness detailing. Then there is radiation — infrared energy crossing open space without contact, without a medium, straight from a hot steel panel to whatever surface sits opposite.

RIMA International's technical literature puts the radiant share at up to 75% of total heat gain or loss in metal-envelope buildings. A bare metal roof panel hits 65-93°C on a summer afternoon. DOE figures show conventional roofs climbing past 65°C in afternoon sun, while a reflective surface under identical conditions stays more than 28°C cooler. All that infrared energy radiating downward from a scorching steel sheet — fiberglass batts simply cannot intercept it.

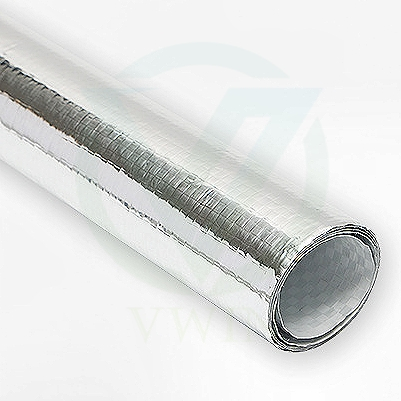

Foil woven fabric does one thing, and does it well. It reflects roughly 97% of incident radiant heat back across the air gap. Its emittance sits at 0.03-0.05, meaning it absorbs almost nothing and re-radiates even less. That single property makes it a silent thermal shield inside wall cavities and beneath roof planes in light steel construction.

Walls: Wrapping the Frame in a Reflective Shell

A typical light steel villa wall is a layered sandwich. From outside in: cladding, weather-resistant breathable membrane, rigid insulation or batts, OSB structural sheathing, steel studs with cavity insulation, interior vapour control layer, plasterboard.

Foil woven fabric installs on the outer face of the steel frame — beneath the breathable membrane, above or integrated with the rigid insulation layer, or functioning as the weather-resistive barrier itself. It performs three roles simultaneously.

First, it creates a continuous radiant break across the entire wall plane. Traditional batts sit between studs, but the studs themselves are thermal bridges. A foil woven layer stretches across every stud, every girt, every junction, blocking radiant energy that would otherwise ride the steel framing straight through. Australian light steel construction standards already treat this outer-layer reflective sarking as standard practice, requiring a minimum 20mm air gap between the reflective face and the cladding to let the physics work.

Second, it functions as an air barrier. Non-perforated foil woven fabric achieves vapour permeance as low as 0.02 perms — a Class I vapour retarder. ASHRAE 90.1's technical corrections revealed that metal-framed wall U-factors had been overstated by 42-43%, largely because code tables ignored air leakage at framing joints. Foil woven fabric, sealed at every seam with reflective tape, closes every gap, every fastener puncture, every stud-to-plate junction — sealing the pathways that account for 15-25% of a building's thermal losses.

Third, it survives the job site. At 120-190 g/m² basis weight and 350-500 N/50mm tensile strength in the machine direction, foil woven fabric handles the rough treatment of full-wall installation without tearing. Installers can unroll and staple it across an entire elevation in one pass. Wind does not rip it. Transport does not puncture it. It operates from -50°C to +110°C and carries an ASTM E84 Class A fire rating, performing reliably for decades inside sealed wall assemblies.

Roofs: A Cooling Layer Beneath the Metal Sheets

Light steel villa roofs are almost always metal — colourbond, galvalume, or steel decking under shingles. Practical choice: light, strong, lasting. But a metal roof is also the single largest thermal load entry point in the entire building.

A south-facing metal roof panel exceeds 65°C on a summer afternoon and can reach 93°C under extreme conditions. All that solar heat radiates downward through the roof cavity. ORNL — Oak Ridge National Laboratory — measured up to 50% reduction in daytime summer heat flow after installing a reflective barrier at the roof line. DOE's more conservative field numbers cite 25-40% reduction in roof heat gain and 5-10% whole-building cooling cost savings in hot climates. When HVAC ducts run through an unconditioned attic, that savings figure climbs to 15-17%.

In a light steel villa roof assembly, foil woven fabric installs beneath the metal roofing panels, draped across purlins or stapled to rafter undersides with a slight sag that maintains at least 25mm of air gap. The reflective face points down, toward the conditioned space. Solar heat absorbed by the roof panel gets reflected back upward before it crosses the gap and reaches the ceiling insulation below. Paired with thick ceiling batts — R-30 or higher in ASHRAE Zones 6-7 — the total roof system delivers effective R-values ranging from R-4.1 to R-14.5, depending on cavity depth and installation detail.

Winter reverses the logic. Indoor heat radiates upward toward the ceiling. The foil woven layer reflects that long-wave energy back into the living space, reducing downward heat loss through the roof assembly. Simultaneously, functioning as a vapour retarder, it prevents warm interior moisture from rising and contacting the cold underside of the roof panel — the exact mechanism that drives condensation, rust, and mould in steel-roofed buildings.

Why Woven Fabric, Not Bubble Foil

Reflective insulation products are not hard to find. So why does foil woven fabric dominate light steel villa envelope applications?

The answer lives on the job site. Bubble-type reflective insulation is cheap and light, but it sags across long roof spans, tears in wind during installation, and loses its shape when stapled to steel framing. Metal Builder Magazine quotes installers saying scrim-reinforced woven-backed products "hold staples, edges don't pull away, and you can wrap an entire wall at once without babysitting it."

Durability matters more over time. Bubble products gradually collapse under sustained heat exposure, and as the bubbles flatten, reflective performance degrades. Foil woven fabric has no bubbles to pop — the aluminium foil layer is laminated directly onto the woven substrate. Industry comparison data shows quality reflective woven products maintaining rated R-values across 3,000 days of service, while fiberglass batts in metal buildings can lose more than a third of their effective R-value within the first two years through compression, moisture intrusion, and settling.

On cost, foil woven fabric runs $0.20-0.80 per square metre for material — well below spray foam at $1.50-3.00 per board foot or rigid board at $0.75-1.25 per square foot installed. It does not try to replace those products. It fills the radiant heat control gap at a fraction of the cost.

A Growing Market That Needs a Standard Component

PMarket Research places the global light steel villa market at roughly $24.5 billion in 2025, projecting growth to $38 billion by 2032 at a 6.48% CAGR. Asia-Pacific leads with a $10.3 billion share. The drivers are concrete: construction timelines 30-40% shorter than traditional masonry, 70-85% factory prefabrication, 20-30% reduction in on-site labour, and steel recycling rates exceeding 90%.

But as light steel villas move from "alternative option" to "mainstream choice," buyer expectations are shifting. Insulation can no longer mean "stuff the cavity and move on." Thermal bridging, radiant heat control, and airtightness — concepts once confined to commercial building energy codes — are becoming hard evaluation criteria for residential buyers.

Foil woven fabric occupies a clear position in this shift. It is not the primary insulation layer. It is the performance multiplier for the entire envelope. At well under one dollar per square metre in material cost, it delivers a dramatic reduction in radiant heat transfer through walls and roofs while simultaneously resolving airtightness and vapour control challenges. For light steel villa builders, specifying it is no longer a premium upgrade. It is the difference between "erected a steel-frame house" and "delivered a genuinely high-performance thermal envelope."
