Floor Underlayment: Excellent Moisture And Sound Insulation with Metallized Non-woven

The Layer Nobody Talks About Until Something Goes Wrong

I've watched people spend $8,000 on hardwood flooring and then cut corners on what goes underneath it. A $0.50-per-square-foot foam pad. That's the part that always bothers me, because that thin foam is the reason floors cup three months later, the reason the neighbor downstairs bangs on the ceiling, and the reason the heating bill looks wrong all winter.

Here's the thing: the underlayment is doing at least three jobs at once. It blocks moisture coming up from the concrete. It deadens impact noise. And if you're running a radiant floor heating system, it bounces heat upward instead of letting it bleed into the slab. Get any one of those wrong and you'll hear about it — literally.

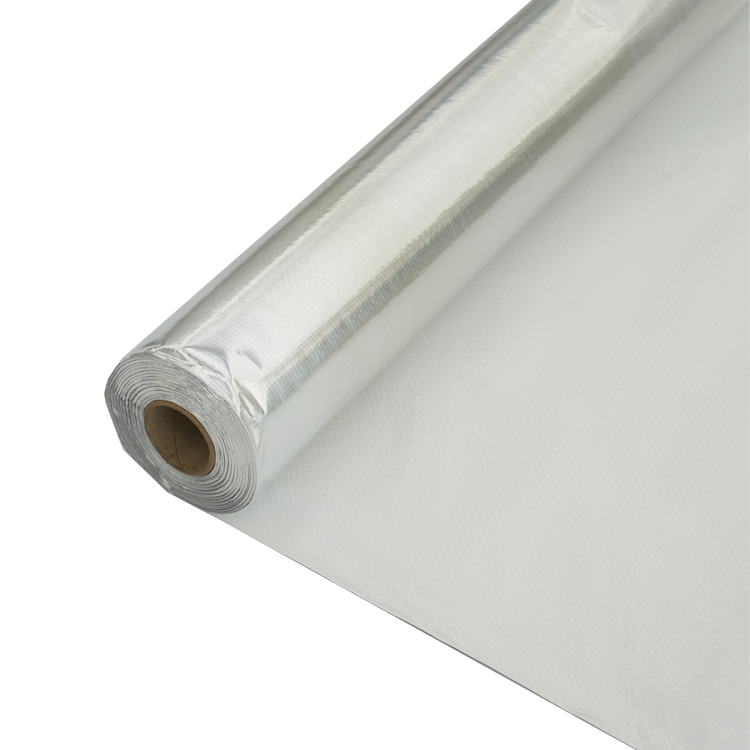

Metallized non-woven composite is the underlayment material that's been quietly eating into the market share of PE foam, cork, and rubber. It's not brand-new — the insulation industry has used similar laminates for years — but flooring contractors are only now catching on to what it does. Once you see the numbers, it's tough to justify going back to basic foam.

Breaking Down the Construction

Three layers, bonded together:

The face is a vacuum-metallized film — VMPET or VMCPP in most cases — where a 6-to-12-micrometer aluminum coating gets vapor-deposited onto PET or CPP film. It looks thin because it is thin. But that coating reflects over 95% of radiant heat and blocks water vapor almost completely. The WVTR (water vapor transmission rate) comes in at 0.3-0.8 g/m²/day. For comparison, a basic polyethylene sheet needs to be 6 mils thick to get anywhere close, and it still won't match the reflectivity.

In the middle there's a hot-melt adhesive layer. This isn't just glue — it's what keeps the metallized film from separating from the non-woven substrate under years of compression and flex. Delamination is the kind of failure that doesn't show up for a decade, so the bonding layer matters more than specs suggest.

The base is non-woven fabric, usually polyester, running 80-160 g/m². Unlike woven textiles, non-wovens have fibers laid randomly and bonded thermally or chemically. That random structure gives them something woven can't: uniform performance in every direction. You can pull it, stretch it, fold it, and it holds. Typical tensile strength sits at 100-200 N/50 mm, which is more than double what you get from cheap PE foam (30-80 N/50 mm).

Finished product specs, for those who like numbers: 2-5 mm total thickness, 100-200 g/m² weight, WVTR under 1 g/m²/day. That WVTR figure is the real separator. It's what puts this material in a different category from plain foam pads.

Moisture — Because Concrete Is Basically a Slow-Moving Swamp

Concrete looks dry. It really doesn't feel dry. And that's the problem.

A fresh concrete slab pumps out 0.5 to 1.5 liters of water vapor per square meter per day during its first year of curing. Even aged concrete — five, ten, twenty years old — keeps emitting moisture, just at lower rates. The Floor Covering Installers Association (FCICA) estimates that roughly 60% of premature flooring failures trace back to moisture. Warped planks, blistered vinyl, adhesive that lets go, mold creeping up from below.

The metallized film layer is the workhorse here. At 0.3-0.8 g/m²/day WVTR, it's doing the same job as a standalone 6-mil polyethylene vapor barrier — except it's only a fraction of the thickness, and it also reflects heat and dampens sound. That's three functions in one material, which is why installers who switch to it tend to stay with it.

The non-woven substrate underneath matters too, though people don't think about this enough. Closed-cell foam has a sneaky problem: if you puncture it, moisture finds the hole and migrates through the cellular structure. Non-woven fabric doesn't have those continuous channels. The fibers create a tortuous path that vapor can't easily navigate. Even if the metallized surface picks up a scratch during installation — and it will, because job sites are messy places — the non-woven backing slows any vapor that tries to push through. It won't stop it entirely, but it buys enough resistance that the flooring above stays dry.

ASTM F2478 says resilient flooring needs concrete with MVER (moisture vapor emission rate) below 3 lbs per 1,000 square feet per 24 hours. This underlayment system holds comfortably inside that limit in real-world conditions.

Sound — Why Your Neighbors Hate You

Noise in buildings comes in two forms, and they need different solutions.

Airborne noise is the easy one to understand — voices, TV, music traveling through the air and passing through the floor assembly. That gets measured as STC (Sound Transmission Class). Impact noise is the one that actually causes the arguments. High heels on hardwood. Kids dropping things. Chairs scraping. That travels through the structure itself and gets rated as IIC (Impact Insulation Class).

Most building codes — the IBC sets the baseline in the US — require IIC 50 or higher in multi-family construction. Pull up the flooring in an old apartment and you'll find a bare wood subfloor scoring maybe 22 on the IIC scale. You need 28+ points of improvement, and almost all of that has to come from whatever sits between the structural slab and the finished floor.

The metallized non-woven underlayment helps through a couple of different mechanisms. The non-woven layer is the main player: its fiber mat acts as a resilient cushion that absorbs impact energy and prevents it from transferring into the structure. Think of it like running on a rubber track versus running on pavement — same force, very different feel. The random fiber orientation means the material compresses uniformly rather than channeling force in one direction.

The metallized surface adds a smaller but real contribution. That dense, reflective aluminum coating reflects and scatters acoustic energy in addition to thermal radiation. It's not the primary sound-blocking mechanism, but every decibel counts when you're trying to clear a code requirement.

In practice, a 2-3 mm metallized non-woven pad delivers ΔIIC of 15-25 dB over a concrete slab. Combined with a reasonable floor-ceiling assembly, you hit IIC 55-65 without breaking a sweat. Rubber underlayments will do slightly better on impact noise (ΔIIC 18-28 dB), but they cost two to three times as much and offer no vapor barrier or reflective insulation. That trade-off is why more specifiers are choosing the metallized composite.

Heat — Your Radiant Floor Is Leaking Energy

Here's something that surprises people: without a reflective underlayment, a radiant floor heating system loses a significant chunk of its output downward into the concrete slab. You're heating the foundation. The living space gets what's left.

Europe's underfloor heating market is worth $3.7 billion right now and climbing at 5.7% per year — on track for $6.5 billion by 2034. That's a lot of heated floors, and not all of them have proper reflective insulation underneath.

Lay the metallized non-woven pad reflective-side-up under the heating element, and it bounces 95%+ of the radiant heat back toward the floor surface. The field data bears this out:

● Heat loss to the subfloor drops 15-25%

● Warm-up time shrinks by roughly a third — controlled tests show a system going from 45 minutes down to 28 minutes to reach comfort temperature

● Surface temperature becomes noticeably more even. Cold spots near exterior walls? Gone.

One installer in the UK documented a 17% drop in electricity consumption over a heating season just by swapping foam for a reflective metallized pad under an electric radiant system. For electric heating, where you're paying for every kilowatt-hour at residential rates, that kind of savings pays for the material cost in the first winter.

The non-woven backing is what makes this practical. Pure aluminum foil or bubble-wrap barriers can reflect heat too, but they crush under furniture legs and degrade under sustained load. Non-woven fabric compresses and springs back. It holds its shape under a bookcase for years and still performs.

Where It Actually Gets Used

You'll find it under laminate and LVT in apartment buildings, where the concrete is damp and the code demands IIC 50+. Radiant floor installations use it to bounce heat upward instead of losing it to the slab. Hotels and hospitals specify it for the acoustic performance. Basements and ground-floor rooms — anywhere concrete moisture is a chronic problem — get the vapor barrier benefit.

It also shows up in renovation work, where pulling up old flooring reveals a subfloor that nobody planned for. A metallized non-woven pad handles surprises better than most alternatives because it's doing triple duty.

Quick Installation Notes

The subfloor needs to be flat (≤3 mm deviation over 2 m) and clean. Sweep it well. One sharp stone can poke through the metallized layer.

Lay it reflective-side up for standard thermal and moisture work. For radiant floors, reflective face goes toward the heat source. Overlap adjacent rolls 50-100 mm and tape every seam with aluminum foil tape — that's what makes the vapor barrier continuous across the whole floor.

Run the material up to the walls and cover with baseboard. If you stop it short of the edge, moisture finds a way around it. Always.

What the Market Data Says

The flooring industry overall is growing steadily — $22.5 billion globally for non-resilient flooring in 2024, projected to $34.5 billion by 2034 (Reports and Data). Floor coatings alone sit at $11.47 billion this year, heading toward $14.31 billion by 2031 (Mordor Intelligence).

A few things are pushing high-performance underlayment demand specifically:

Green building programs (LEED, BREEAM, WELL) are getting stricter about documented acoustic and thermal performance. You can't just show structural compliance anymore — they want the numbers.

More people are living in apartments and condos. Urbanization is doing what it always does: stacking people vertically, which means impact noise becomes a legal issue, not just an annoyance.

Radiant heating keeps expanding, especially in Europe where energy codes tighten every few years. Every radiant floor needs insulation underneath it, and reflective insulation outperforms foam.

Homeowners and tenants are asking smarter questions. "What's under my floor?" used to be a question nobody thought to ask. That's changing.

Final Thought

You can't see it once the floor is down. That's the whole point. A good underlayment makes the floor above perform better, last longer, cost less to heat and cool, and keep the neighbors happy. Metallized non-woven composite does all of that in 2-5 mm of material for $1.50-3.50 per square meter.

It's not the cheapest pad in the store. Foam is cheaper. But foam can't do what this does. And when you're spending serious money on the floor itself, skimping on the underlayment is the kind of false economy that comes back to haunt you — usually within the first year.
