Do You Know How Aluminum-plastic Composite Films Simultaneously Ensure Easy-peel Properties And Heat-seal Strength?

A Question That Makes Perfect Sense

Last month, a procurement manager in the consumer goods industry called me. He sounded genuinely puzzled. "I tested the aluminum-plastic composite film samples you sent," he said. "The seal peels open smoothly. But I can't wrap my head around it — if it's easy to tear open, won't it burst during shipping? In my experience, a tight seal is hard to open, and an easy-open seal can't hold. How are you pulling off both?"

Honestly, it's a fair question. Intuitively, "easy-peel" and "strong seal" do sound contradictory — one demands a gentle pull, the other demands resistance to bumps and crushing. But in the world of aluminum-plastic composite films, these two properties don't conflict at all. They're actually controlling two completely different mechanical dimensions.

Easy-Peel Does Not Mean Weak Seal

Many people equate "easy-peel" with "weak seal." That's a common misunderstanding. Heat seal strength and peel force are two separate metrics.

Heat seal strength describes how firmly the seal holds up during transport, drops, and stacking pressure — will the seal rupture or not? Peel force describes the consumer's opening experience — how much effort, at what angle, does it take to tear it open cleanly? The key insight is: a seal can be absolutely robust AND peel open cleanly at the same time.

Think of it like a good security door. It stays locked tight under normal conditions, but opens effortlessly with the right key. Easy-peel composite film works the same way — it's not that the seal is weak, it's that the film "knows exactly where to open."

The Secret Is in the Sealant Layer Formulation

What makes "strong yet peelable" actually work is the precise engineering of the heat-seal layer material.

Conventional heat-seal layers use standard PE or CPP. After sealing, the molten polymer tangles aggressively with the container rim. Trying to peel it apart either requires enormous force or tears messily, leaving jagged residue behind.

Easy-peel composite films take a different approach. The sealant layer uses specially formulated modified resins — things like ethylene-octene copolymers (EOE) or tailored metallocene polyethylene (mPE). During heat sealing, these materials do form a seal strong enough to survive transport and storage without leaks or burst bags. But when the consumer peels upward from the seal edge, the material undergoes "cohesive failure" — it splits cleanly within itself rather than clinging stubbornly to the container rim. In other words, the seal layer separates neatly from the middle instead of wrestling with the container surface.

That's the core mechanism. The absolute seal strength stays high — typically controlled between 5 and 15 N/15mm — more than enough to handle logistics abuse. At the same time, the peel direction is predictable and uniform, so a normal tearing motion opens it smoothly.

The Layer Structure Plays Its Part Too

Beyond the sealant formulation itself, the overall layer structure contributes to this precision act.

A typical easy-peel aluminum-plastic composite film runs: outer PET (strength and printability) → adhesive layer → aluminum foil (barrier) → adhesive layer → easy-peel heat-seal layer. Each layer has its job: PET provides rigidity, aluminum foil blocks oxygen and moisture, and the sealant layer handles "sealed tight but opens clean."

Adhesive selection matters here too. Standard polyurethane adhesives that don't fully cure can cause interlayer delamination, undermining the whole structure. Modified epoxy systems or solvent-free adhesives ensure uniform bonding between layers, guiding the peel force along the designed path rather than letting it break where it shouldn't.

Temperature, Pressure, and Dwell Time: The Three Keys to Sealing

No matter how clever the material formulation, once you reach the sealing station, three parameters must work in harmony: temperature, pressure, and dwell time.

Temperature too low means the sealant layer doesn't fully melt — micropores remain and cause leaks. Temperature too high causes the sealant to overflow the seal zone or scorch, creating a bond that's simultaneously over-adhered and structurally weak. Insufficient pressure means the film doesn't make intimate contact with the container rim, leaving voids. Excessive pressure squeezes molten sealant out of the seal area, thinning the seal and weakening it. Dwell time too short prevents proper fusion; too long risks damaging heat-sensitive substrates.

These three variables interact. Raising temperature can shorten dwell time, but push too far and you create new problems. A good supplier runs process window validation before shipment — testing 5 to 8 parameter combinations across the customer's actual sealing temperature range to find the zone where peel force is most stable.

How VWIN Approaches Easy-Peel Composite Films

At VWIN, we've built years of experience in easy-peel aluminum-plastic composite films. Our approach is straightforward: instead of asking customers to figure out parameters themselves, we deliver the heat-seal formulation, target peel force range, and recommended sealing parameters as a complete package. Standard products hold peel force in the 3-8 N/15mm range — the sweet spot for comfortable opening — but we can adjust higher or lower based on specific needs.

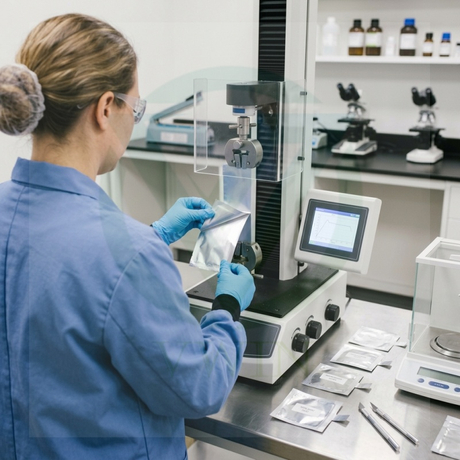

Every batch ships with a complete peel strength test curve — not just the average value, but the maximum and minimum across the full roll width, ensuring consistent opening feel from start to finish. If your application has special requirements — like maintaining easy-peel performance after retort sterilization, or matching a specific container rim material — we can customize the sealant formulation.

If you're dealing with a "sealed tight but impossible to open" or "easy to open but can't survive shipping" problem, get in touch. Send us your container samples and we'll run a complete matching test.
