Complete Sample Testing Workflow for Aluminum-Plastic Composite Films: From Incoming Inspection to Line Trial

A food packaging buyer told me last month that nearly losing his mind over sample communication with a new supplier. The supplier sent three rolls of sample material with a "certificate of compliance" that basically said one thing: "Meets customer requirements." When he asked for peel strength values, OTR data, and heat seal temperature windows, the reply came back as: "We've tested it. No problem."

Those three words — "no problem" — are the most dangerous thing you can hear when sourcing aluminum-plastic composite films.

This isn't an isolated case. Many buyers, especially those evaluating composite films for the first time, receive samples without knowing what to test, what metrics to evaluate, what numbers qualify as acceptable, or what red flags mean the material will fail on their production line. The result: samples look fine on the bench, bulk goods arrive, and everything falls apart — delamination, wrinkling, weak seals, barrier failure — all the problems surface at the worst possible time.

This article walks through the complete sample testing workflow for aluminum-plastic composite films from start to finish. What to check at each step, what data to look at, what standards to apply.

Step One: Visual Incoming Inspection

Before touching any instruments, unroll the sample and hold it up against a light source. Scan the full length. You're looking for surface scratches, gel particles, bubbles, creases, contamination, and any visible oxidation or darkening on the aluminum layer. Check the roll edges — are they clean and straight, or damaged and compressed? These aren't cosmetic concerns. A scratch through the aluminum layer means the barrier is compromised. Bubbles trapped between layers suggest residual solvent or uneven adhesive coating during lamination.

At the same time, verify all labeling against the specification sheet: material structure (e.g., PET/AL/PE), individual layer thicknesses, roll width, roll diameter, and batch number. Confirm nothing was mis-shipped or mixed up.

Step Two: Thickness Uniformity Measurement

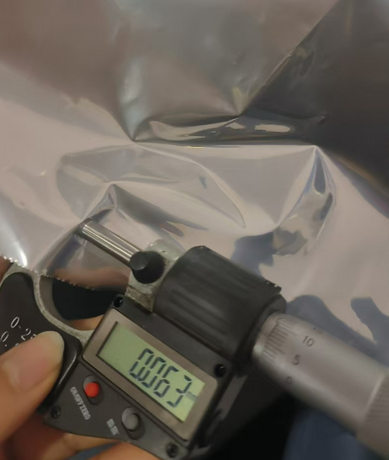

Using a micrometer with 0.001mm precision, take measurements at regular intervals across the roll width. Thickness uniformity in composite film directly affects downstream lamination stability and bag-making consistency. Total thickness deviation should stay within ±5 percent. The aluminum layer uniformity matters even more — if the foil runs thin in spots, pinhole density spikes and moisture and oxygen barrier performance collapses.

Experienced buyers ask suppliers for a thickness distribution map for each roll, not just a single nominal value. If thickness variation exceeds ±3 percent from nominal on a single roll, that's a sign of process control problems at the manufacturing stage.

Step Three: Peel Strength Testing

This is the core test for lamination bond quality. Per GB/T 8808 or ASTM F904, cut specimens 15mm wide and at least 150mm long. Run a 180-degree peel test on a universal testing machine at 300mm/min separation speed. Standard plastic-to-plastic laminates require peel strength of at least 1.0 N/15mm. Aluminum-plastic retort-grade laminates need 2.0 N/15mm or higher.

What matters just as much as the number is what the peeled surface looks like afterward. If the aluminum and PE layers separate cleanly with almost no PE residue left on the aluminum surface, the bond is weak — delamination risk during processing is high. A good lamination should show cohesive failure, where the PE itself tears apart rather than cleanly releasing from the foil.

Test a minimum of five specimens per batch, averaging the results. Sample in both machine direction and cross direction, because peel performance can differ depending on orientation.

Step Four: Barrier Performance Testing

Barrier performance is the entire reason aluminum-plastic composite film exists. Two metrics matter: oxygen transmission rate (OTR) and water vapor transmission rate (WVTR).

OTR is tested per GB/T 1038 (pressure differential method) or ASTM D3985. A proper aluminum-plastic structure should deliver OTR values below 0.5 cm³/m²·24h — effectively near zero. If readings come back higher, the foil layer has pinholes or micro-channels exist between laminate layers.

WVTR is tested per GB/T 31355 (infrared sensor method) or ASTM F1249. Aluminum-containing composite films should hit WVTR of 0.1 g/m²·24h or lower. For food and pharmaceutical packaging, this number is non-negotiable — let moisture in and the product is done.

One trap people fall into: if the sample surface has creases or micro-wrinkles, barrier test data becomes completely unreliable. Test samples must be flat, crease-free, and pinhole-free. Take them from the middle of the roll, peeling away the outer 6 to 8 layers first since those have been exposed to warehouse handling and environmental fluctuation.

Step Five: Heat Seal Testing

For films destined to become packaging bags, heat seal performance determines whether seals hold or fail. On a heat seal tester, run combinations of temperature, pressure, and dwell time. Heat seal strength should reach at least 30 N/15mm. Equally important is the heat seal temperature window — if the window is too narrow, even slight temperature drift on the production line means seals that don't bond or seals that burn through.

If your filling line runs specific heat seal parameters, share those with your supplier upfront. Have them validate seal performance using your actual production conditions during the sample stage.

Step Six: Production Line Trial

Once steps one through five pass, the sample enters real combat. Run a batch on your own bag-making or lamination equipment at normal production settings. Line trials reveal problems that bench testing cannot catch — film friction coefficient mismatch causing feeding issues, winding tension problems causing wrinkles, or heat seal jaw temperature misaligned with the film's melting point.

After the trial run, inspect the finished product: seal strength, surface flatness, dimensional accuracy, any signs of delamination or wrinkling. Once everything passes, the sample is officially validated and you're clear to move into bulk production ordering.

Practical Advice on Sample Testing

Don't just accept the supplier's test report at face value. Ask for raw data — not just pass/fail conclusions — ideally with photos of test equipment and environmental condition logs. If you have the capability, send a retained sample to an independent third-party lab for verification.

Label and archive every sample roll. If bulk goods develop problems later, your original sample is the baseline for comparison and root cause tracing.

Different applications demand different testing priorities. Food packaging focuses on barrier performance and hygiene compliance. Electronics packaging prioritizes moisture protection and anti-static properties. Industrial insulation materials require aluminum layer reflectivity and long-term durability testing. Know your application and you'll know which data points are critical.
