Color Customization for Foil Woven Fabric: Reflectivity Differences in White, Silver, and Colored Coatings

The question we get almost every week

"Can you make it white?"

In our technical conversations with buyers, this question comes up just about as often as "what's your actual reflectivity number." The person asking it usually has a building insulation project or a factory roof in mind — they figure white has to be cooler because common sense tells us a white shirt beats a black one in summer. That instinct is right, but only about half right.

Why silver is the reflectivity ceiling

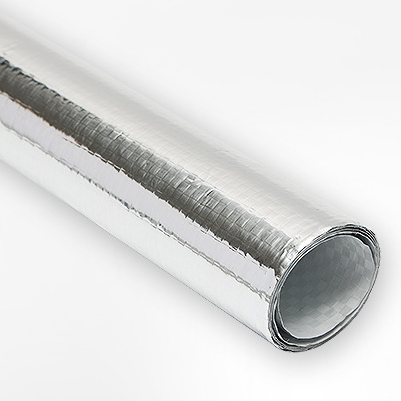

Let's start with foil woven fabric in its most basic form: the silver one.

"Silver" is simply the natural color of the aluminum foil itself — metallic luster, no pigment coating on top. The standard five-layer construction of our foil woven fabric is AL/PE/Woven/PE/AL, and the outermost layer is a continuous sheet of high-purity aluminum. This aluminum surface achieves solar reflectance of 95-97%, with emissivity sitting at 0.03-0.05.

What those numbers actually mean in practice: over 95% of incident solar radiation bounces straight back. Of the remaining fraction that gets absorbed, the extremely low emissivity means very little is re-radiated downward as infrared heat. Silver aluminum foil woven fabric operates under this dual mechanism of "high reflection plus low emission" — and that combination makes it the single best color option for thermal performance.

Bar none.

Data from the U.S. Department of Energy shows radiant barriers reduce attic heat gain by 25-40%, cutting cooling costs by 5-10%. Testing at Oak Ridge National Laboratory goes further: adding a radiant barrier to an R-11 attic reduces summer daytime heat flow by up to 50%. All of those figures are based on bright silver aluminum-facing.

White coatings: what you trade and what you gain

White-coated foil woven fabric typically achieves solar reflectance in the 75-85% range — 10 to 20 percentage points below silver. That gap isn't trivial. Under 950 W/m² direct solar irradiance, each square meter of white surface absorbs roughly 100-190W more solar energy than its silver counterpart. That absorbed heat eventually migrates through to the protected side via conduction or re-radiation.

So why do buyers still choose white?

The reasons are practical. Some projects demand a specific appearance. White roofs comply with California's Title 24 energy standards, LEED certification requirements, and ENERGY STAR programs. Certain commercial buildings, warehouses, and distribution centers have unified design mandates — silver metallic luster doesn't always fit the visual language. In food processing plants or pharmaceutical storage facilities where visual cleanliness matters, white simply reads as more appropriate to the people making procurement decisions.

There's also a weathering advantage. Bare aluminum exposed outdoors gradually oxidizes under UV radiation and acid rain, developing a dull patina that reduces reflectance over time. A white coating essentially acts as armor for the aluminum substrate — initial reflectance is lower, but the decay curve is slower. After three to five years of outdoor exposure, the "aged reflectance" of white-coated fabric may converge with or even overtake that of aged silver.

Colored coatings: an exercise in engineering compromise

Things get more interesting once you move into custom colors — blue, green, gray, black.

Colored coatings work by adding a pigment layer on top of the reflective base. The traditional approach to achieving a specific color is selective absorption: to make something look blue, the pigment absorbs every visible wavelength except blue. The problem is that roughly half of all solar energy lives in the near-infrared band, invisible to the human eye. Traditional pigments tend to absorb NIR right alongside visible light, and reflectance drops accordingly.

In concrete terms: dark colors (deep blue, forest green, black) typically deliver solar reflectance of only 5-15%. Surface temperatures under direct sun can reach 70-85°C. Medium-depth shades (gray, terra cotta, sage) manage 30-40%. Modern infrared-reflective pigment technology has improved the situation somewhat — "cool color" versions of dark coatings can push reflectance up to 25-35%, approaching traditional medium-tone performance.

But even with the most advanced pigment chemistry available today, colored foil woven fabric cannot return to silver's 95%. This is a fundamental physical constraint: pigment absorption in the visible spectrum is an irreversible cost. You cannot reflect light that your pigment has been designed to absorb.

The temperature gap in real numbers

Numbers are abstract. Let's translate them into something you can feel.

Under identical solar exposure, silver foil woven fabric keeps covered surfaces roughly 50-70°F (28-39°C) cooler than black surfaces. That figure comes from multiple comparative field tests on canopy and tarpaulin materials. White versus black shows a differential of about 30-50°F (17-28°C). White versus silver: approximately 15-25°F (8-14°C).

The Florida Solar Energy Center documented a telling result: switching from a dark surface (reflectance 0.08) to a white metal surface (reflectance 0.60) cut annual cooling energy by 38% in single-story homes. With a silver aluminum surface at 0.90+ reflectance, that savings number climbs further.

Another useful reference point comes from CRRC (Cool Roof Rating Council) data. On a 90°F day, a traditional black surface reaches 160-185°F. A white cool-roof surface stabilizes at 100-110°F. That 50-to-70-degree difference radiates downward through the roof deck and into the conditioned space below — where your HVAC system pays the bill.

How to choose

There is no "best color." There is only the right color for the job.

If your primary objective is maximum thermal insulation — steel structure factory roofs, cold-chain warehouses, high-temperature workshops — silver is the only answer. The 95-97% reflectance is simply not achievable with white or colored coatings.

If your project must comply with specific building energy codes, or the facility has visual requirements — commercial warehousing, logistics parks, food processing plants — white is a reasonable compromise. The 75-85% reflectance still delivers meaningful cooling savings while satisfying aesthetic and regulatory needs.

If color is non-negotiable — brand identity requires blue or green — accept the reflectance penalty and compensate through increased insulation thickness, improved ventilation design, or additional thermal barriers.

From our own production line, base foil woven fabric material cost ranges from $0.20 to $0.80 per square meter. Silver requires no additional coating cost. White and colored versions add coating processes and pigment expense, typically raising costs by 15-30%. When thermal performance is the priority, silver always delivers the highest performance-per-dollar ratio.

But if what you need isn't "maximum reflectance" — it's "adequate reflectance plus the right color" — we can customize for that too.
