Cold Protection Applications of Foil Woven Fabric in Disaster Relief Emergency Tents

When the Cold Kills More Quietly Than the Disaster

At three in the morning, in a temporary settlement at the foot of Afghanistan's Hindu Kush range, the temperature has plunged to minus fourteen degrees Celsius. Hamid's family of five huddles inside a standard UNHCR family tent, but the air inside is barely warmer than outside. Condensation beads on the inner walls. Ground cold punches through the thin polyester floor without resistance. Hamid's youngest daughter shivers between two blankets—not because she isn't bundled up, but because heat is escaping from her body in ways she cannot feel: radiating upward through the canopy, conducting downward through the frozen earth, bleeding sideways through walls that offer almost no thermal resistance.

This scene repeats itself every winter across hundreds of thousands of refugee camps and post-disaster settlements worldwide. In November 2025, UNHCR warned that millions of forcibly displaced people face a brutal winter with dramatically reduced assistance as humanitarian funding plummets. In Afghanistan, nine out of ten refugees live in poverty. In Ukraine, this marks the fourth winter of full-scale war, with temperatures threatening to drop to minus twenty degrees in some regions. Across the Middle East, over 750,000 people risk enduring the season without blankets, insulation, or heating.

The problem isn't the tent structure itself. It's that conventional tent materials—cotton canvas, polyester ripstop, PVC-coated fabric—have virtually no capacity to block radiant heat loss. Human bodies emit infrared energy accounting for roughly 40 to 45 percent of total heat dissipation. Ordinary woven fabric does nothing to reflect it back. Ground conduction is an equally brutal pathway: frozen soil or compacted snow can sit at minus thirty degrees, while a standard tent floor offers thermal resistance barely above R-0.5.

Aluminum foil woven fabric composite is changing this equation. And it's doing so not as a marginal improvement, but as a system-level thermal intervention.

Not a Space Blanket Writ Large

It helps to clear up a common misconception. Those crinkly silver emergency blankets sold at checkout counters—Mylar film—they do reflect around ninety percent of radiant body heat. But they also trap condensation against your skin, shred in moderate wind, produce an unnerving racket with every movement, and possess almost zero tensile strength. You cannot build a tent out of them.

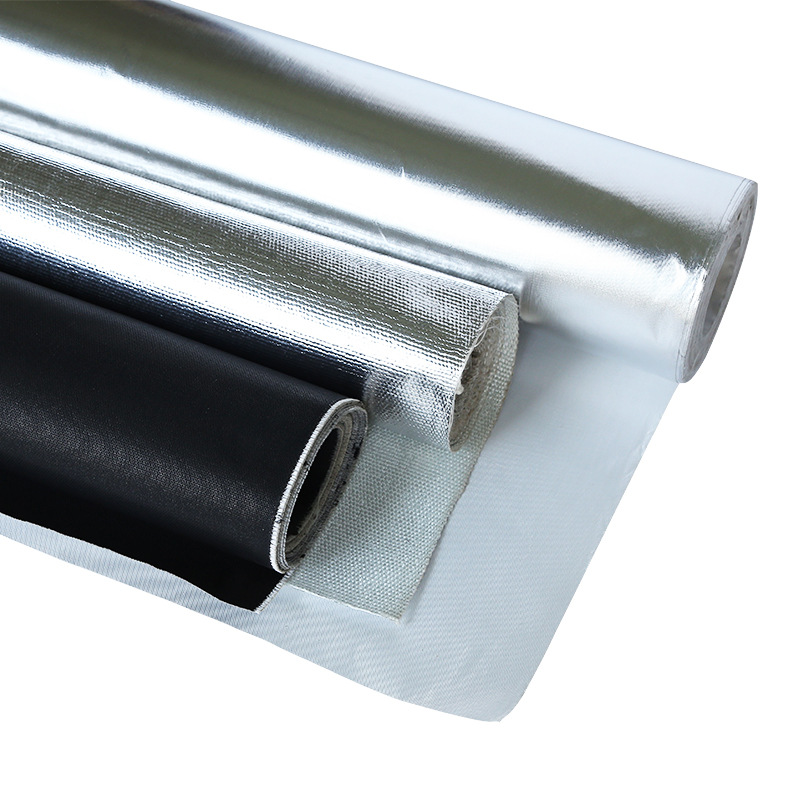

Foil woven fabric is an entirely different category of material. Its architecture is a sandwich: a high-strength woven base—typically polyester or fiberglass scrim—bonded on both faces with aluminum foil through hot-press lamination, with a polyethylene moisture barrier sandwiched in between. The result is a five-layer AL/PE/Woven/PE/PE laminate that marries the thermal reflectivity of aluminum with the mechanical toughness of engineered fabric.

In disaster relief tent applications, several properties matter enormously:

Thermal reflectivity runs 95 to 97 percent for the pure aluminum surface, with emissivity as low as 0.03 to 0.05. Translated into practical terms: when this material lines a tent interior, it bounces back the overwhelming majority of infrared energy emitted by occupants rather than letting it pass through the walls and vanish into cold air. Field measurements show that tents fitted with foil woven fabric liners run eight to twelve degrees Celsius warmer than standard tents under identical heating conditions. At minus ten outside, that eight-degree gap is the difference between sleeping and spending the night shaking.

Mechanical durability is where the woven substrate earns its keep. At a typical basis weight of 120 to 190 grams per square meter, the composite delivers machine-direction tensile strength of 350 to 500 Newtons per 50 millimeters and cross-direction strength of 100 to 330 N/50mm. That is orders of magnitude stronger than metallized film, which cracks and delaminates after a few flex cycles. For tents deployed in refugee camps—where average operational lifespans stretch to fifteen or twenty years—durability isn't a nice-to-have. It's the baseline.

Temperature tolerance covers minus fifty to plus one hundred ten degrees Celsius, meaning the material stays flexible in Arctic cold and doesn't delaminate under midday desert sun. Class A fire rating is non-negotiable in high-density camp environments where fire spreads catastrophically. The waterproof rating of 0.013 grams per square meter per kilopascal handles freezing rain and snowmelt intrusion without adding meaningful weight.

Three Deployment Configurations, Three Thermal Strategies

In practice, foil woven fabric serves three distinct roles within a disaster relief tent system, each targeting a different heat loss pathway.

Interior reflective liner is the most straightforward and thermally efficient application. Panels are cut and secured to the tent's inner walls and ceiling, foil face oriented inward, creating an enclosed reflective cavity. Occupant radiation bouncing off walls is reflected back into the living space instead of escaping through the shell. This configuration recovers the highest proportion of radiant heat and is relatively simple to install—many manufacturers now pre-fit attachment points for reflective liners in their cold-weather tent models.

Ground insulation pad addresses the most underappreciated heat loss channel. When a tent sits on frozen earth or packed snow, the floor provides essentially zero insulation. Laying foil woven fabric beneath the tent floor, reflective side up, creates a radiant barrier between the ground and the shelter interior while the woven substrate interrupts conductive heat flow. The SPHERE Standards recommend 4.5 to 5.5 square meters of covered space per person in cold climates—a figure that already accounts for basic ground insulation needs. Testing shows ground-level insulation layers raise the tent floor surface temperature by six to nine degrees, dramatically improving sleeping-zone comfort.

Exterior storm wrap is the most aggressive configuration. In extreme blizzard conditions, some relief organizations wrap an additional layer of foil woven fabric around the tent exterior. Here the foil faces outward—not primarily for thermal reflection, but to leverage the material's high tensile strength and waterproof rating as a wind-resistant, moisture-blocking shell. At 0.013 g/m²kPa, it withstands freezing rain and driven snow. Material consumption is higher, but when temperatures plunge below minus twenty with wind forces exceeding Beaufort scale eight, this outer armor can mean the difference between a tent that holds and one that collapses or floods with cold air.

The Logistics That Actually Determine Coverage

Procurement for disaster relief isn't purely a technical decision—it's a logistics calculation. The global prefabricated emergency shelter market reached $545.6 million in 2025 and is projected to hit $820.4 million by 2032 at a CAGR of 6.01 percent. The broader humanitarian relief tent market was valued at $1.25 billion in 2025, with Asia Pacific commanding 34.5 percent of global demand. At these volumes, per-unit cost and shipping weight directly determine how many families get covered.

Foil woven fabric material costs run approximately $0.20 to $0.80 per square meter. For a standard 16-square-meter family tent, outfitting both interior liner and ground pad translates to roughly $15 to $40 in total material cost. Compare that against UNHCR winter assistance kits—heaters, blankets, insulation panels—priced at $80 to $180 per set, and the foil liner becomes a marginal-cost, high-impact supplement. More critically, at 120 grams per square meter, a complete liner-and-pad set for one tent weighs under 2.5 kilograms. It rolls up and tucks into the tent's own shipping package, consuming zero additional container space.

On the supply chain side, foil woven fabric ships in rolls—typically 1.2 to 1.5 meters wide, up to 100 meters long. Tent manufacturers can cut and heat-seal liner panels directly in their fabrication shops, eliminating the need for complex on-site modification in the field. For disaster scenarios where speed is everything, "ready out of the box" beats "modify at destination" every time.

From Emergency Response to Long-Term Resilience

UNHCR's 2025 eco-design specifications for family tents now call for recycled materials and enhanced performance standards. Foil woven fabric aligns naturally with this direction: aluminum is infinitely recyclable using only five percent of the energy required for primary smelting, and the polyethylene and woven substrate layers can be separated and recovered at rates exceeding ninety-five percent.

Emerging technical directions worth watching include aerogel interlayers between foil and substrate for dramatically improved insulation (aerogel thermal conductivity drops to 0.013 W/m·K, the lowest of any known solid material), and selective-emissivity coatings on the foil surface that maintain high reflectivity while improving moisture vapor management to address condensation buildup.

But regardless of how the technology evolves, the fundamental logic remains unchanged: after disaster strips everything away, a tent is often the only barrier between a human being and the elements. Making that barrier actually hold back the cold isn't a materials science exercise in a laboratory. It's a question of dignity—and survival.
