Anti-Static Grades of Aluminum-Plastic Composite Films: Special Requirements for Electronic Component Packaging

Last autumn, a procurement manager at a European semiconductor distributor received two batches of anti-static aluminum foil packaging bags from different suppliers. They looked identical — silver-gray surface, heat-sealed edges, zip-lock closures. He loaded sensitive ICs from both batches into separate shipping cartons bound for two SMT lines in Southeast Asia. Three weeks later, one line's incoming defect rate spiked from a routine 0.3% to 2.1%. Tracing back, the root cause was the bags themselves — that particular batch had a surface resistivity above 10¹³ Ω, nowhere in the anti-static range. The ICs had been electrostatically damaged during transit, but the damage was microscopic. Factory testing couldn't catch it. It wasn't until the boards had been running at the customer site for days that failures surfaced.

That's the weight carried by three words: "anti-static aluminum composite film." It is not a vague marketing label. It is a specification measured in orders of magnitude. Get one order of magnitude wrong, and your packaging stops protecting chips and starts discharging into them.

This article unpacks the anti-static grading system for aluminum-plastic composite films in electronic packaging — the material architecture behind each grade, the selection logic for different applications, and the parameters that actually matter when you're placing a purchase order.

Why Electrostatic Protection Is Non-Negotiable in Electronics Packaging

Start with the numbers that should make operations managers uncomfortable. According to ESDA research, 25% to 35% of component failures in electronics manufacturing trace back to electrostatic discharge damage. Bondline's analysis points out that modern components now operate at voltages as low as 0.7V to 1.8V — while the human perception threshold for static discharge sits around 3,000 volts. In other words, a discharge powerful enough to destroy a sensitive IC's gate oxide layer is something you cannot feel.

What makes this worse is latent damage. Over 60% of ESD failures go undetected during manufacturing tests. The device passes factory inspection, then fails weeks or even months later at the customer site. This kind of "ticking time bomb" damage can reduce Mean Time Between Failures by up to 50%. Industry estimates put global ESD-related losses at over $5 billion annually.

Semiconductor process miniaturization is making the problem worse, not better. In the mid-1990s, transistor feature sizes hovered around 350 nanometers. Today's mass production has pushed down to 3 to 5 nm. Gate oxide thickness has shrunk from 50–100 nm to under 2 nm. Each generation of shrinkage makes devices more vulnerable to electrostatic events. Advanced packaging formats — BGA, WLCSP, flip-chip — deliver higher performance density but simultaneously compress the ESD safety margin.

This is why you cannot wrap sensitive components in an ordinary plastic bag and call it a day. Packaging itself is a protective link in the chain, and aluminum-plastic composite film plays a triple role in that link: electrostatic dissipation, electromagnetic shielding, and moisture barrier.

Anti-Static Is Not Binary — It's a Continuous Spectrum

Most people's understanding of "anti-static" stops at "it's not regular plastic." In reality, a material's electrostatic behavior exists on a continuous spectrum, divided by surface resistivity into four broad bands.

Conductive: surface resistivity below 10⁵ Ω/sq. Charge dissipates extremely fast. Useful where rapid charge elimination is critical, but if the discharge rate is too aggressive without series resistance control, it can actually deliver a secondary shock to ultra-sensitive devices.

Dissipative: surface resistivity between 10⁵ and 10¹² Ω/sq. This is the sweet spot for most electronic component packaging — charge bleeds away slowly through the material's distributed resistance, neither building up to dangerous potentials nor discharging too abruptly. The ANSI/ESD S541 standard defines the 10⁶ to 10¹² Ω/sq range as the effective envelope for ESD protective packaging.

Anti-static: surface resistivity between 10⁹ and 10¹² Ω/sq. These materials suppress triboelectric charging but cannot rapidly dissipate accumulated charge. Fine for packaging relatively insensitive devices (Class 3, HBM withstand >4,000V), but woefully inadequate for Class 1C components (HBM <100V).

Insulative: surface resistivity above 10¹² Ω/sq. Ordinary PE bags and PP bags land squarely here — their surfaces can sustain over 5,000 volts of static charge indefinitely. Putting sensitive ICs in a standard poly bag is essentially sending them into battle without armor.

The critical dividing line sits at 10⁶ Ω. Below it, the material can shield against external electrostatic fields. Above it, the material can only slowly bleed off its own accumulated charge and offers no shielding against external threats.

How Aluminum-Plastic Composite Films Deliver ESD Protection

The use of aluminum-plastic composite film in electronic packaging is fundamentally a multi-layer engineering solution that addresses three threats simultaneously: electrostatic charge, moisture ingress, and mechanical damage.

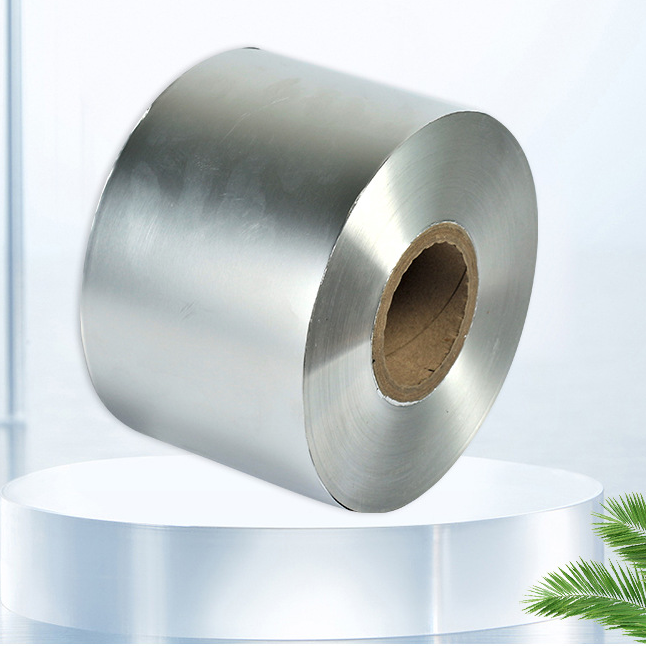

The classic construction is a three-layer laminate: outer PET film, middle aluminum foil layer, inner PE heat-seal layer. PET provides printability and external protection, aluminum foil handles moisture and gas barrier, PE delivers seal integrity. When this structure is adapted for electronics packaging, the outer PET layer can be doped with anti-static agents or coated with a conductive layer to achieve dissipative surface resistivity in the 10⁶ to 10⁹ Ω/sq range.

A four-layer structure adds a nylon (NY) layer, forming a PET/AL/NY/PE stack. The nylon dramatically improves puncture resistance — critical when packaging PCBA boards loaded with tall-pin connectors, where component leads can puncture through the bag wall and break the seal. Premium configurations go further with five layers (PET/AL/NY/AL/PE), doubling the aluminum content to achieve near-zero water vapor transmission.

Aluminum's shielding capability comes from a fundamental physics property: the skin depth of electromagnetic waves in a conductor. At 1 MHz, aluminum's skin depth is approximately 84 micrometers. A 10μm aluminum layer covers roughly 1.5 skin depths, yielding about 13 dB of shielding per layer. A standard four-ply laminate with two metallized plies exceeds 26 dB total attenuation — above the 20 dB Class B floor in ANSI/ESD S11.4. For military and aerospace applications, MIL-PRF-81705E Type I demands over 40 dB of shielding, which typically requires thicker aluminum or additional metallized layers.

Grading Requirements by Application

Not every electronic component needs the same level of protection. The right grade of aluminum-plastic composite film depends on the device's ESD sensitivity classification and its Moisture Sensitivity Level (MSL).

For Class 1C devices with HBM withstand below 100V — an increasingly large share of modern semiconductors — metallic shielding bags with a metallized layer below 10³ Ω/sq are mandatory for all transit and storage. The metallized layer creates a Faraday cage analogue that attenuates external electrostatic fields by at least 35 dB under ANSI/ESD S11.4 test conditions at 1 MHz. The bag's charge decay time must also be under 2 seconds, meaning a 1,000V initial charge must drop below 100V within that window.

For moisture-sensitive devices at MSL 2 and above, anti-static performance alone is not enough. Per IPC/JEDEC J-STD-033, these components require Moisture Barrier Bags (MBB) with WVTR below 0.0003 g/100 sq.in./24h. A pure aluminum foil layer at 9μm thickness approaches zero WVTR, making it the core barrier element in MBB construction. Combined with desiccant packs and humidity indicator cards, high-barrier aluminum foil bags can provide up to 12 months of dry storage for MSL 3 through MSL 6 components.

Military and aerospace applications operate under their own standards. MIL-PRF-81705E Type I bags demand over 40 dB shielding effectiveness and WVTR below 0.002 g/m²/day, used to package ultra-sensitive devices like GaAs MMIC radar front-ends rated below 50V HBM. These applications typically require four or five-layer laminates with aluminum foil thickness no less than 12μm.

For PCB sub-assembly transfer between facilities and work-in-process staging, reclosable metallic shielding bags are the workhorse solution. They allow visual part-number identification without breaking the seal while providing adequate field shielding.

Parameters You Must Verify Before Purchase Order

When procuring aluminum-plastic composite films for electronics packaging, "anti-static" in the product description is not enough. The following parameters must be written into your procurement specification with batch-level test reports required:

Surface resistivity — tested per ASTM D257 or IEC 61340-2-3. Dissipative materials should fall between 10⁶ and 10¹² Ω/sq; metallic shielding layers should be below 10³ Ω/sq. If the supplier cannot provide test data or the numbers fall outside range, disqualify them.

Charge decay time — from 1,000V to 100V. Acceptable products should achieve this in under 2 seconds.

Shielding effectiveness — tested per ANSI/ESD S11.4 at 1 MHz. Commercial grade requires ≥20 dB; military grade requires ≥40 dB.

Water Vapor Transmission Rate (WVTR) — for moisture-sensitive packaging, this is the core metric. MBB bags should deliver WVTR below 0.0003 g/100 sq.in./24h.

Puncture resistance — for PCBA with tall-pin components, recommend puncture resistance no less than 16 lbs.

Pinhole density — aluminum foil's most insidious weak point. General industry standards allow up to 200 pinholes/m² for 7μm foil, but vacuum-packaging and electronics-grade applications should specify ≤50 pinholes/m². Suppliers should include pinhole test data in their quality documentation.

Compliance certifications — for products shipped to EU and North American markets, packaging materials must comply with RoHS 2.0, REACH, and halogen-free requirements. Military-grade applications additionally require MIL-PRF-81705E and relevant ESD control standard conformance.

The Cost of Getting It Wrong

An SMT line producing $1 million annually without proper ESD controls typically sees 5% to 10% yield loss — that's $50,000 to $100,000 in margin silently evaporated every year.

The far more expensive scenario is latent failure at the customer site. A board that "passed" factory testing but fails three months after deployment carries a full cost stack — logistics, diagnosis, component replacement, customer downtime, and brand reputation damage — typically ranging from $500 to $5,000 per incident. Compare that to the per-unit cost of a compliant aluminum-plastic composite anti-static bag, which runs from a few cents to a few tens of cents.

Anti-static packaging is not a cost center. It is a profit insurance policy. Select the right material grade, verify the critical parameters, and build batch traceability. Do those three things, and packaging stops being the most overlooked weak link in your supply chain.
